Harvey Tool

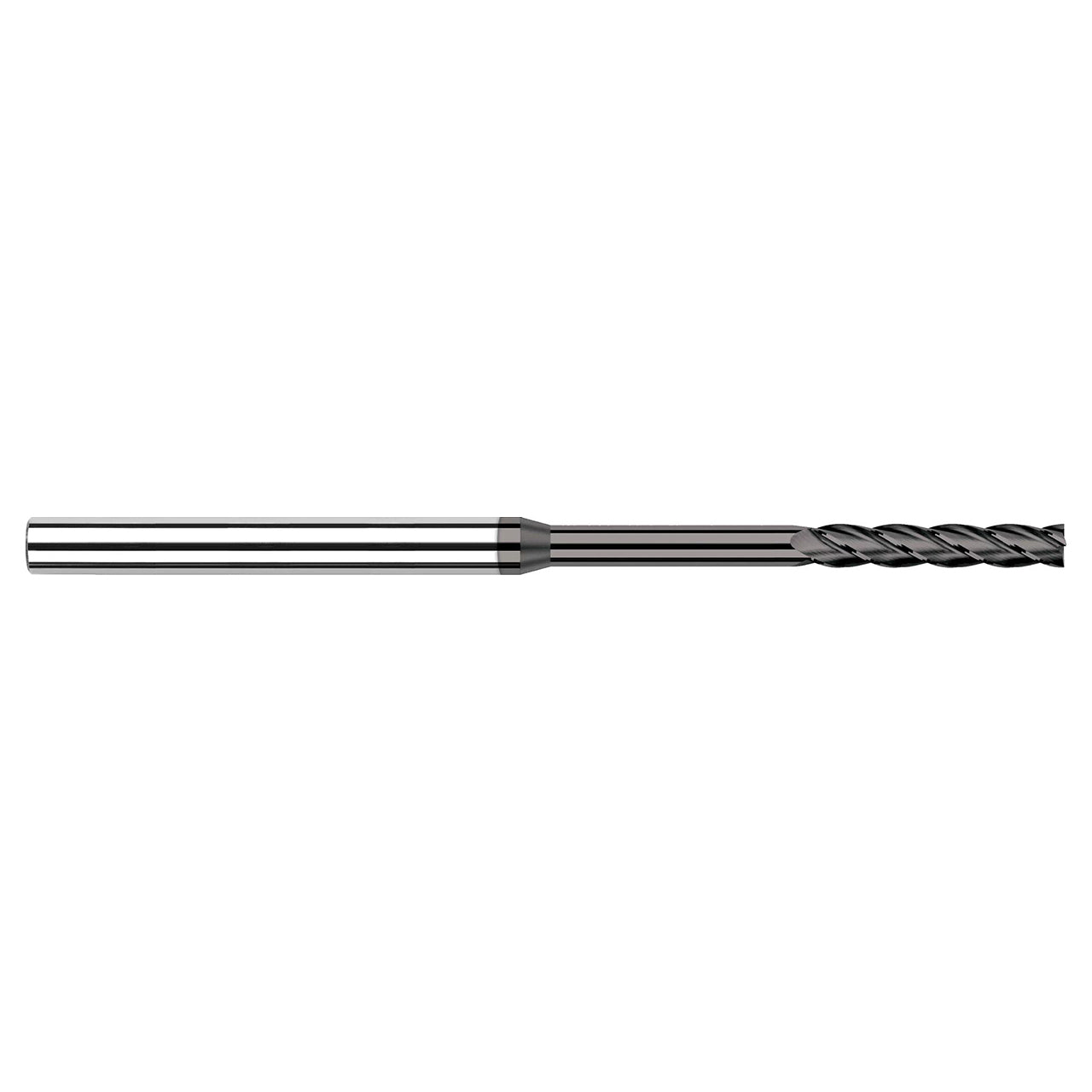

Harvey Tool 746262 | 0.0620" (1/16) Diameter 0.1250" (1/8) Shank x 0.3120" (5/16) LOC x 2.5000" (2-1/2) OAL 4 Flutes CVD Diamond Coated Square End Mill

Harvey Tool 746262 | 0.0620" (1/16) Diameter 0.1250" (1/8) Shank x 0.3120" (5/16) LOC x 2.5000" (2-1/2) OAL 4 Flutes CVD Diamond Coated Square End Mill

SKU: 25211246

$163.70 USD
$163.70 USD $163.70 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

View full details

This CVD diamond coated End Mill, ideal for machining graphite and composites, green carbide, and green ceramics, is ideal for machining deep within a part.

  • Ideal for machining graphite and composites, green carbide, and green ceramics
  • True crystalline CVD diamond on solid carbide substrate
  • Reduced neck for clearance and maximum rigidity
  • h6 shank tolerance for high precision tool holders
  • Maximum abrasion resistance increases tool life
  • CNC ground in the USA
  • Center cutting
  • 4 flutes

Product Specifications
Tool Number 746262
Cutter Diameter (Inch) 0.0620" (1/16)
Neck Diameter (Inch) 0.0600"
Length of Cut (Inch) 0.3120" (5/16)
Overall Reach (Inch) 0.5000" (1/2)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
LOC Multiple 5x
Reach Multiple 8x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C5
