Harvey Tool

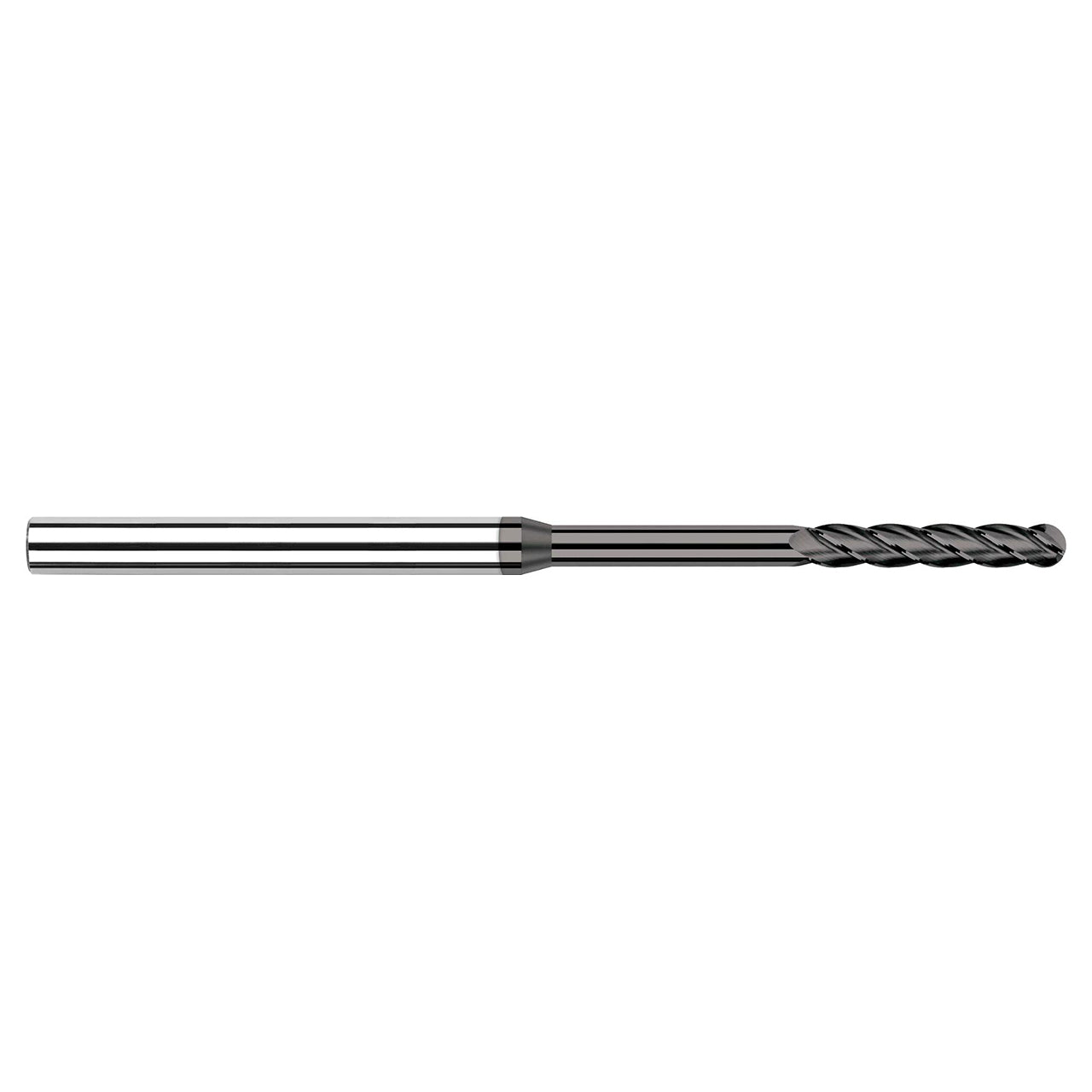

Harvey Tool 745908 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.6250" (5/8) LOC x 2.5000" (2-1/2) OAL 4 OAL CVD Diamond Coated Ball End Mill

Harvey Tool 745908 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.6250" (5/8) LOC x 2.5000" (2-1/2) OAL 4 OAL CVD Diamond Coated Ball End Mill

SKU: 25211236

$182.80 USD
$182.80 USD $182.80 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

View full details

Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Ball - Long Reach, Long Flute feature tooling with true crystalline CVD diamond on a solid carbide substrate, and a reduced neck for clearance and maximum rigidity.

  • Ideal for machining graphite and composites, green carbide, and green ceramics
    • True crystalline CVD diamond on solid carbide substrate
  • Reduced neck for clearance and maximum rigidity
  • Maximum abrasion resistance increases tool life
  • h6 shank tolerance for high precision tool holders
  • CNC ground in the USA
  • Center cutting
  • 4 flutes

Product Specifications
Tool Number 745908
Cutter Diameter (Inch) 0.1250" (1/8)
Neck Diameter (Inch) 0.1200"
Length of Cut (Inch) 0.6250" (5/8)
Overall Reach (Inch) 1.0000" (1)
Overall Length (Inch) 2.5000" (2-1/2)
Flutes 4
LOC Multiple 5x
Reach Multiple 8x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C5
