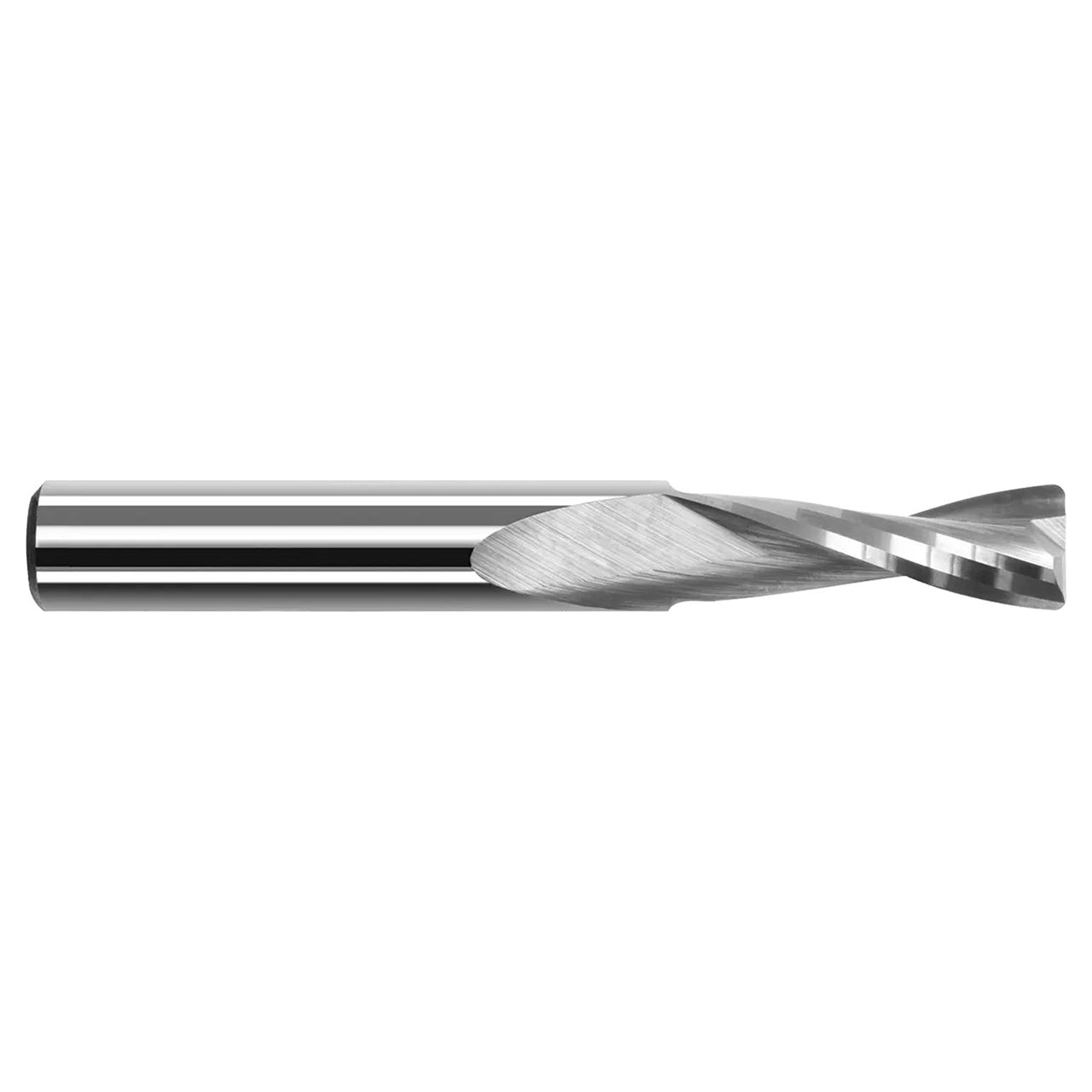

Harvey Tool 739132 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC x 4.0000" (4) OAL x 0.0600" Radius 2 Flutes Uncoated Carbide Plastics 2 Flute Corner Radius End Mill

Harvey Tool 739132 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC x 4.0000" (4) OAL x 0.0600" Radius 2 Flutes Uncoated Carbide Plastics 2 Flute Corner Radius End Mill

SKU: 25232235

$184.90 USD
$184.90 USD $184.90 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 159 Grams

View full details

The solid carbide, 2 flute, corner radius upcut end mill for plastics has the ability to plunge and ramp due to its center cutting design, and has a slower helix which reduces lifting forces, making this an excellent choice for milling fiber-reinforced materials on vacuum table set ups.

  • Slower helix reduces lifting forces, making design preferable for fiber-reinforced applications and vacuum table setups
  • High rake, high relief design with large flute valley maximizes chip removal and performance
  • Center cutting design improves plunging and ramping
  • CNC ground in the USA
  • Solid Carbide

Product Specifications
Tool Number 739132
Cutter Diameter (Inch) 0.5000" (1/2)
Length of Cut (Inch) 1.5000" (1-1/2)
Overall Length (Inch) 4.0000" (4)
Corner Radius (Inch) 0.0600"
Flutes 2
LOC Multiple 3x
Shank Diameter (Inch) 0.5000" (1/2)
Coating Uncoated
