Product Specifications
| Manufacturer Part Number | 738905-C3 |
| Diameter (Inch) | 5/64" |
| Diameter (Decimal Inch) | 0.078" |
| Neck Diameter (Inch) | 1/32" |
| Neck Diameter (Decimal Inch) | 0.031" |
| Length of Cut (Decimal Inch) | 0.073" |
| Neck Length (Inch) | 1/4" |
| Neck Length (Decimal Inch) | 0.250" |
| Overall Reach (Decimal Inch) | 0.322" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Radius (Decimal Inch) | 0.039" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Wrap Angle (Degree) | 300 Degree |
| Number of Flutes | 2 |
| Material | Carbide |
| Coating | AlTiN |

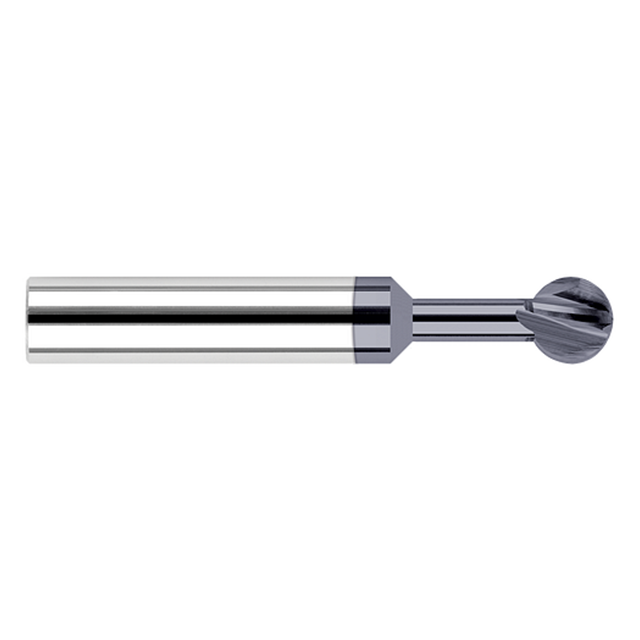

| Product Type | Undercutting End Mill |
