Harvey Tool

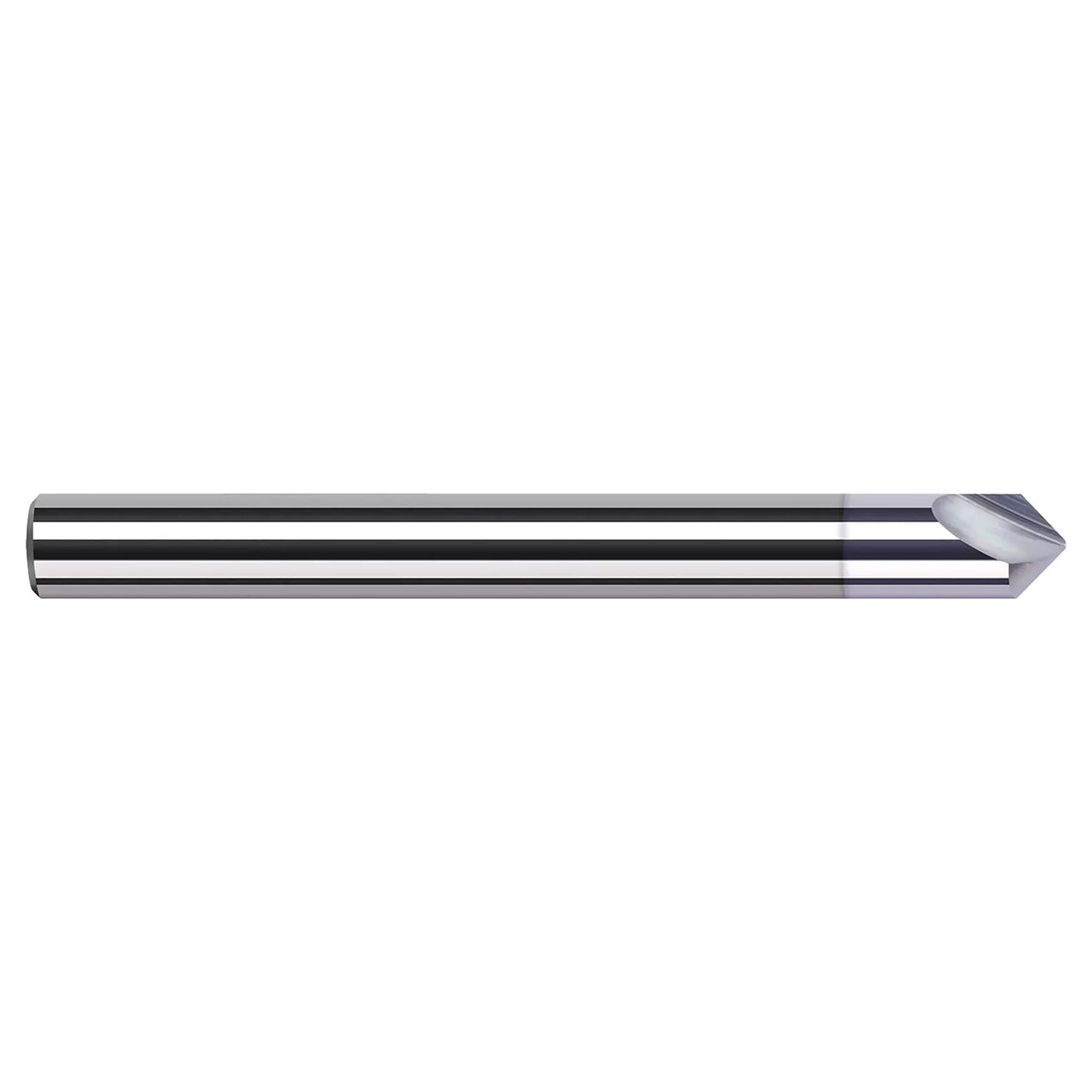

Harvey Tool 738145-C8 | 90 Degree x 0.0560" LOC x 0.1250" (1/8) Shank x TiB2 Coated Carbide Tip Radius Marking Engraving Cutter

Harvey Tool 738145-C8 | 90 Degree x 0.0560" LOC x 0.1250" (1/8) Shank x TiB2 Coated Carbide Tip Radius Marking Engraving Cutter

SKU: 25232511

$33.50 USD
$33.50 USD $33.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

12 in stock

Free Shipping on Orders Over $75

View full details
  • Radius on tip creates radius in bottom of groove and improves strength
  • Relieved for right hand milling
  • CNC ground in the USA
  • Half-round drill style
  • Double-ended
  • Solid carbide

Product Specifications
Tool Number 738145-C8
Length of Cut (Inch) 0.0560"
Overall Length (Inch) 1.5000" (1-1/2)
Radius (Inch) 0.0150" (1/64)
Angle per Side 45
Included Angle 90
Flutes 2
Shank Diameter (Inch) 0.1250" (1/8)
Coating C8
