Harvey Tool

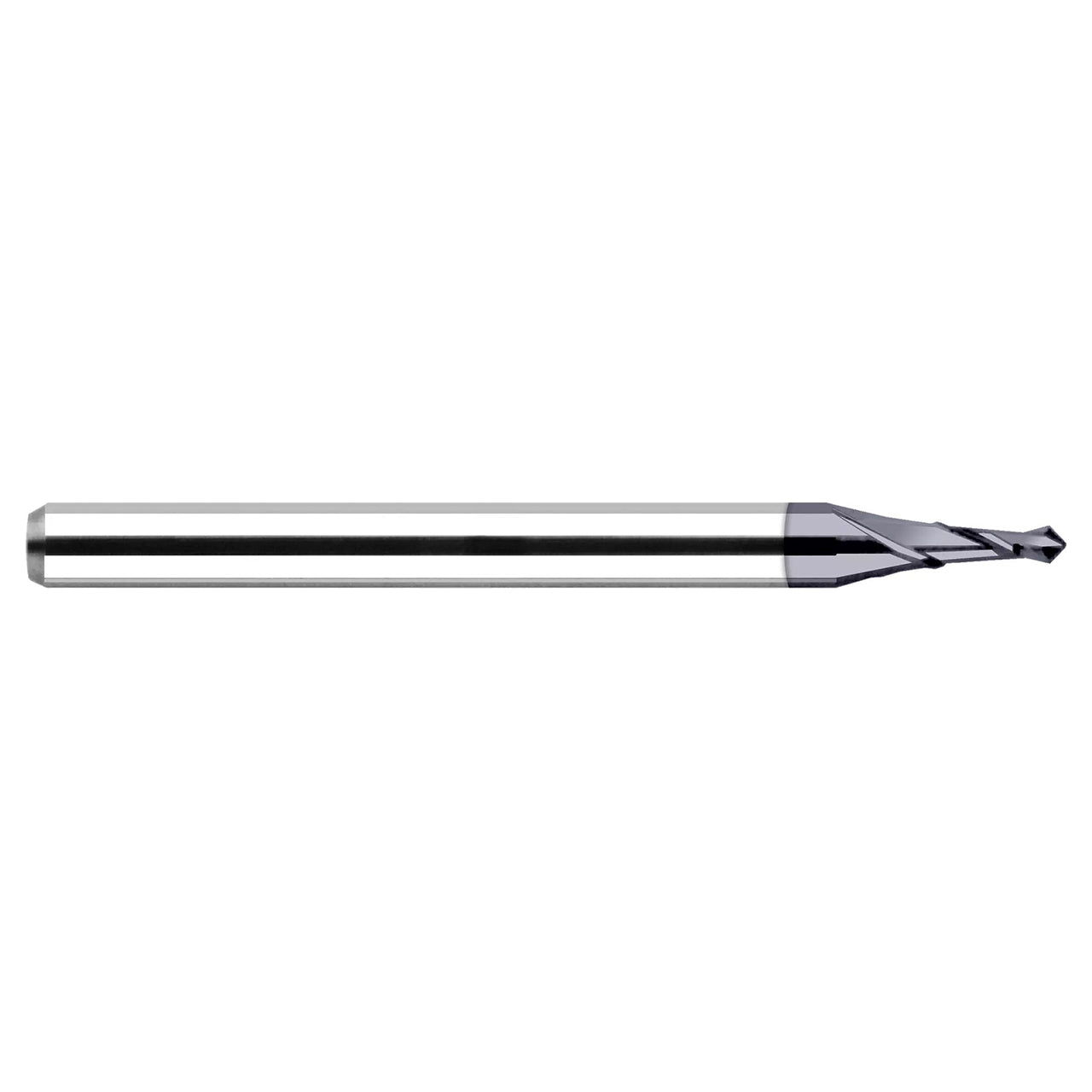

Harvey Tool 737812-C3 | 0.6250" (5/8) Flute Length x 0.1870" (3/16) Shank x 2.0000" (2) OAL 2 Flutes AlTiN Coated Carbide Miniature Drill

Harvey Tool 737812-C3 | 0.6250" (5/8) Flute Length x 0.1870" (3/16) Shank x 2.0000" (2) OAL 2 Flutes AlTiN Coated Carbide Miniature Drill

SKU: 10252815

$41.70 USD
$41.70 USD $41.70 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 14 Grams

11 in stock

Free Shipping on Orders Over $75

View full details
  • Thinned Web to Reduce Walking
  • Self-Centering Point Geometry
  • CNC ground in the USA
  • Solid Carbide
  • 2 Flutes

Product Specifications
Tool Number 737812-C3
Drill Diameter (Inch) 0.1870" (3/16)
Flute Length (Inch) 0.6250" (5/8)
Overall Length (Inch) 2.0000" (2)
Angle per Side 71
Included Angle 142
Flutes 2
LOC Multiple 3x
Web Thickness (Inch) 0.0130"
Type II
Shank Diameter (Inch) 0.1870" (3/16)
Coating C3
