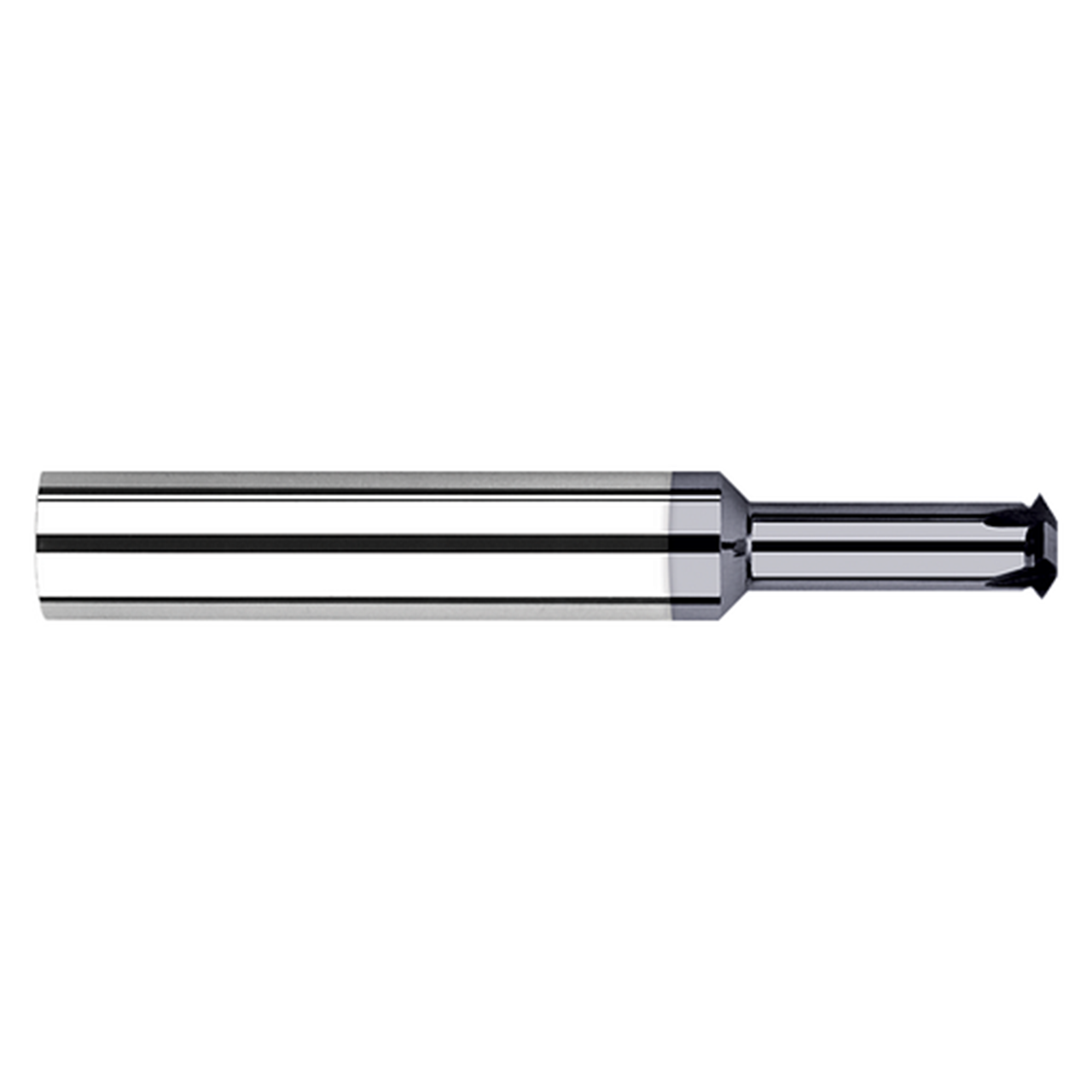

Product Specifications
| Manufacturer Part Number | 737634-C3 |
| Cutter Diameter (mm) | 8.00mm |
| Neck Diameter (mm) | 4.80mm |
| Length of Cut (mm) | 1.85mm |
| Overall Length (mm) | 75.00mm |
| Maximum Depth of Thread (mm) | 33.50mm |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 4 |
| Size | M10 |
| Reach Multiple | (7x) |
| Shank Diameter (mm) | 8.00mm |
| Coating | C3 |
| Product Type | Thread Milling Cutter |
