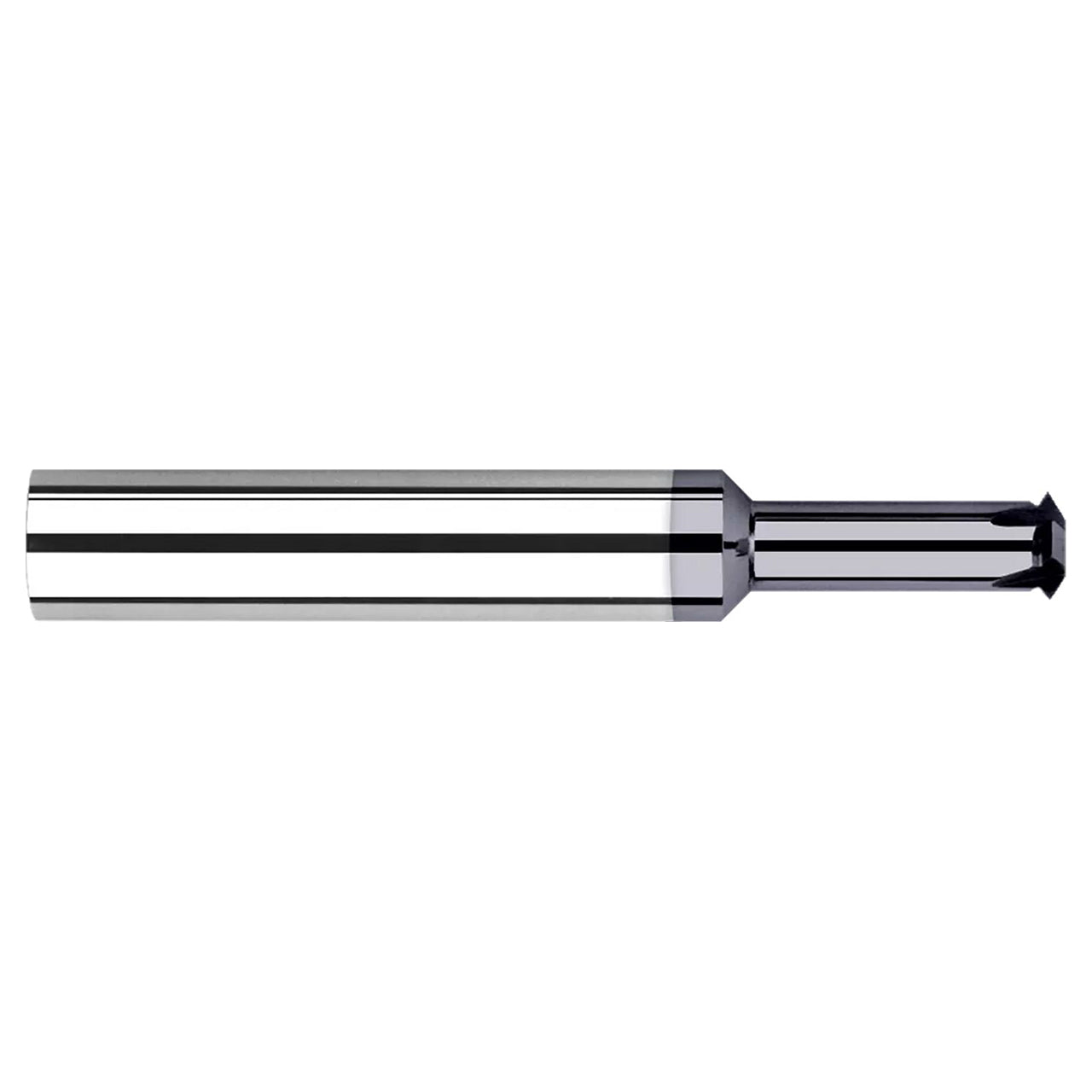

This metric offering of Thread Milling Cutters - Single Form features tools intended to cut internal and external, right hand and left hand metric threads, and can mill multiple pitches.
- Single thread form – can mill multiple pitches
- Tip of included angle ground to a point
- Mills right hand and left hand threads
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 737624 |
| Cutter Diameter (Inch) | 2.300 mm |
| Neck Diameter (Inch) | 1.380 mm |
| Length of Cut (Inch) | 0.531 mm |
| Overall Length (Inch) | 38.000 mm |
| Max Depth of Thread (Inch) | 9.500 mm |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flutes | 4 |
| Reach Multiple | 7x |
| Size | M3 |
| Shank Diameter (Inch) | 3.000 mm |
| Metric | Y |
| Coating | Uncoated |
