Product Specifications
| Manufacturer Part Number | 730662 |
| Cutter Diameter (Decimal Inch) | 0.062" |
| Cutter Diameter (Inch) | 1/16" |
| Neck Diameter (Decimal Inch) | 0.060" |
| Length of Cut (Decimal Inch) | 0.186" |
| Overall Reach (Decimal Inch) | 0.375" |
| Overall Reach (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Corner Radius (Decimal Inch) | 0.010" |
| Number of Flute | 4 |
| LOC Multiple | (3x) |
| Reach Multiple | (6x) |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | Uncoated |

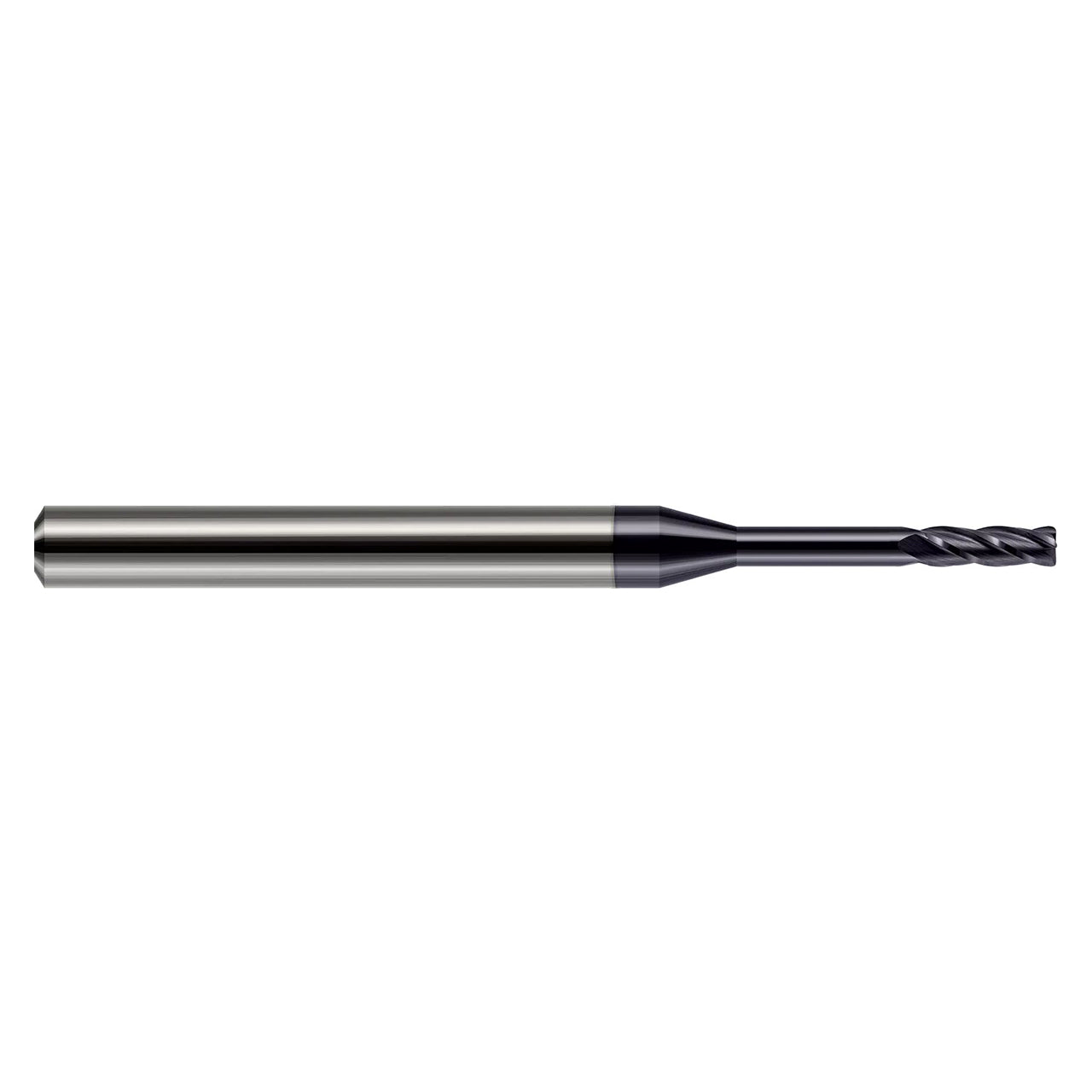

| Product Type | Corner Radius End Mill |
