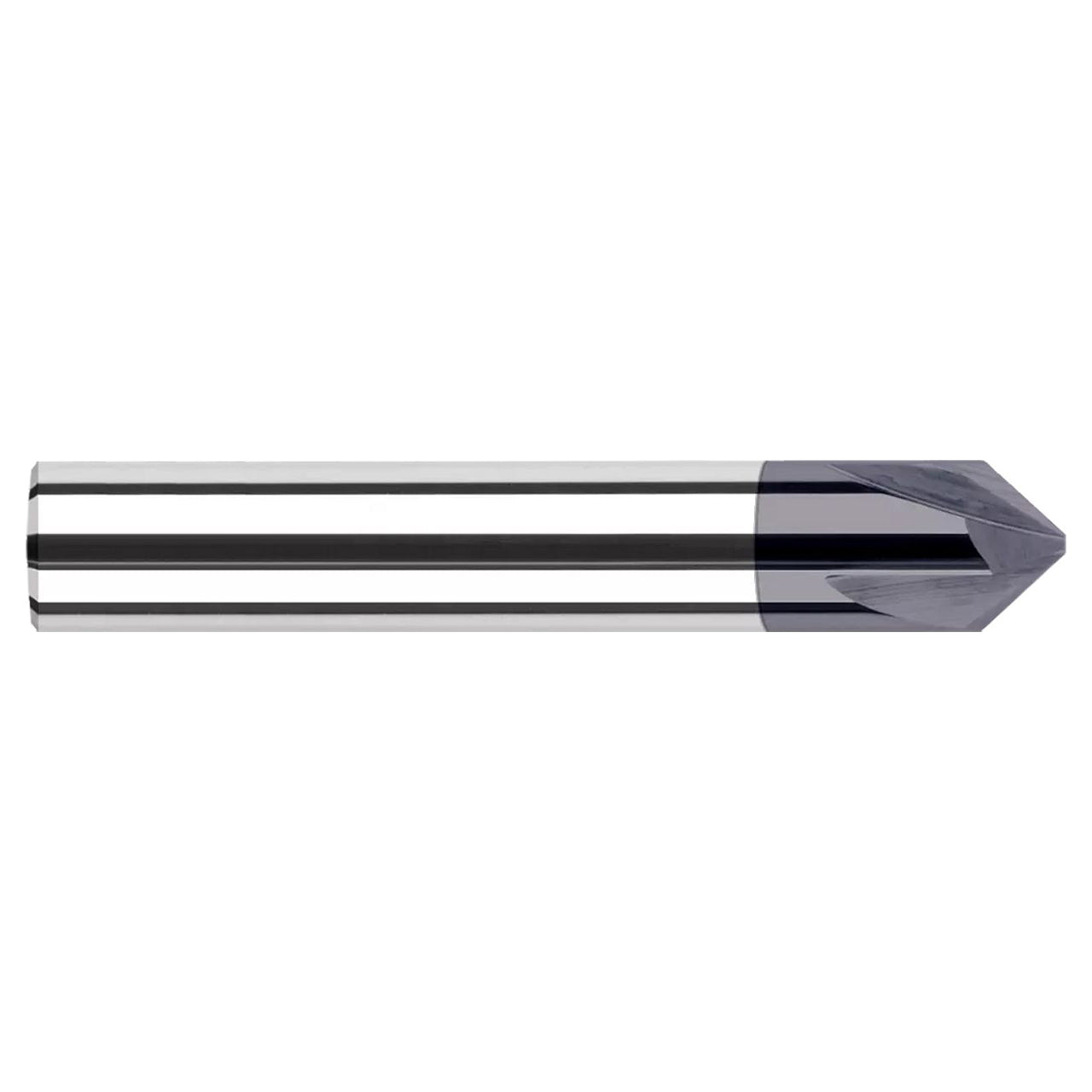

Harvey Tool's offering of pointed and flat end Chamfer Cutters has been engineered in three different styles: pointed, which is great for chamfering and deburring in small and narrow areas; and flat, which is non-end cutting, and optimized for profiling and chamfering larger features. End cutting which is great for blending the floor and a chamfered wall in one pass.
- Flat End - (non-cutting) multi-flute design improves tool life and finish for profiling and chamfering larger features
- CNC ground in the USA
Product Specifications
| Tool Number | 72420-C8 |
| Length of Cut (Inch) | 0.2580" |
| Overall Length (Inch) | 2.0000" (2) |
| Tip (Inch) | 0.0100" |
| Angle per Side | 20 |
| Included Angle | 40 |
| Flutes | 2 |
| Type | I |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating | C8 |
| Center Cutting | Y |
