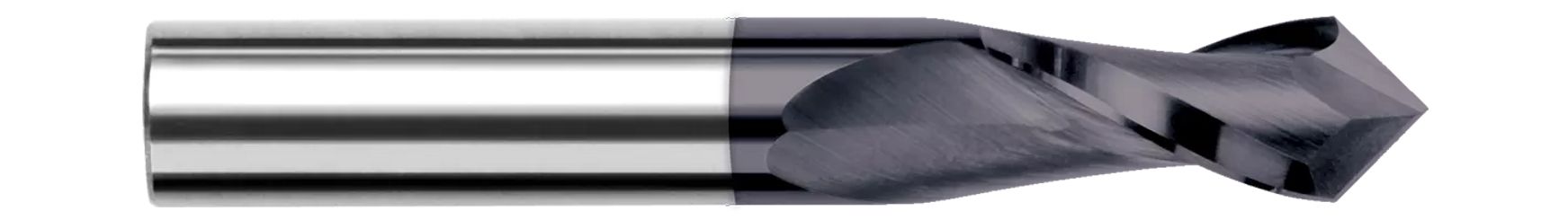

Designed for chamfering, milling, and some spotting applications, this Harvey Tool offering of fully stocked Drill / End Mills.
- Designed for chamfering, milling, and some spotting applications
- Not recommended for drilling steel
- 2 flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.0400" |
| Length of Cut (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Number of Flutes | 2 |
| Angle per Side | 45 |
| Included Angle | 90 |
| LOC Multiple | 3x |
| Web Thickness | 0.0030" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
