Product Specifications
| Manufacturer Part Number | 717116 |
| Cutter Diameter (Decimal Inch) | 0.250" |
| Cutter Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.240" |
| Length of Cut (Decimal Inch) | 0.375" |
| Length of Cut (Inch) | 3/8" |
| Overall Reach (Decimal Inch) | 2.500" |
| Overall Reach (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (Inch) | 4" |
| Corner Radius (Decimal Inch) | 0.030" |
| Number of Flute | 4 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (10x) |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | C5 |

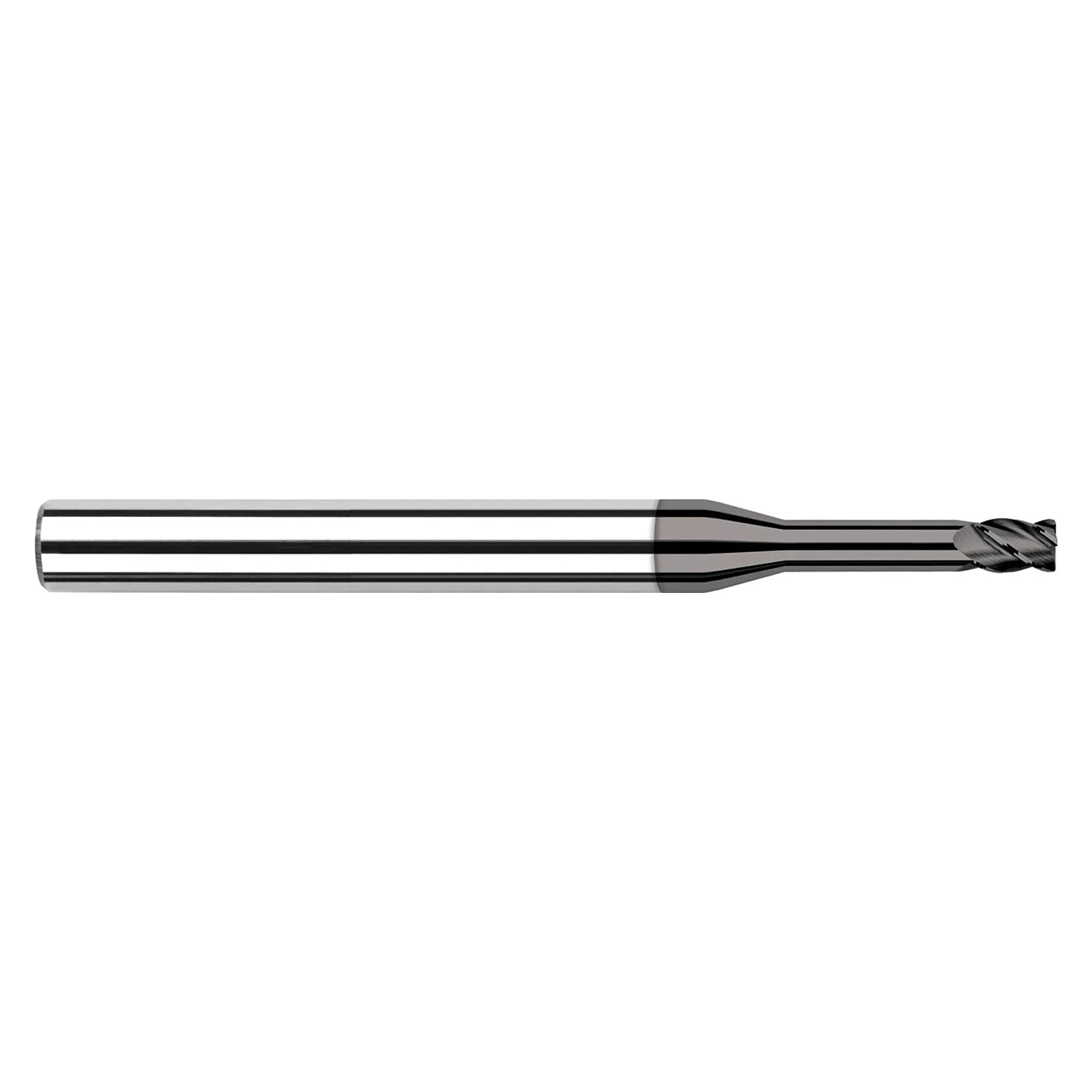

| Product Type | Corner Radius End Mill |
