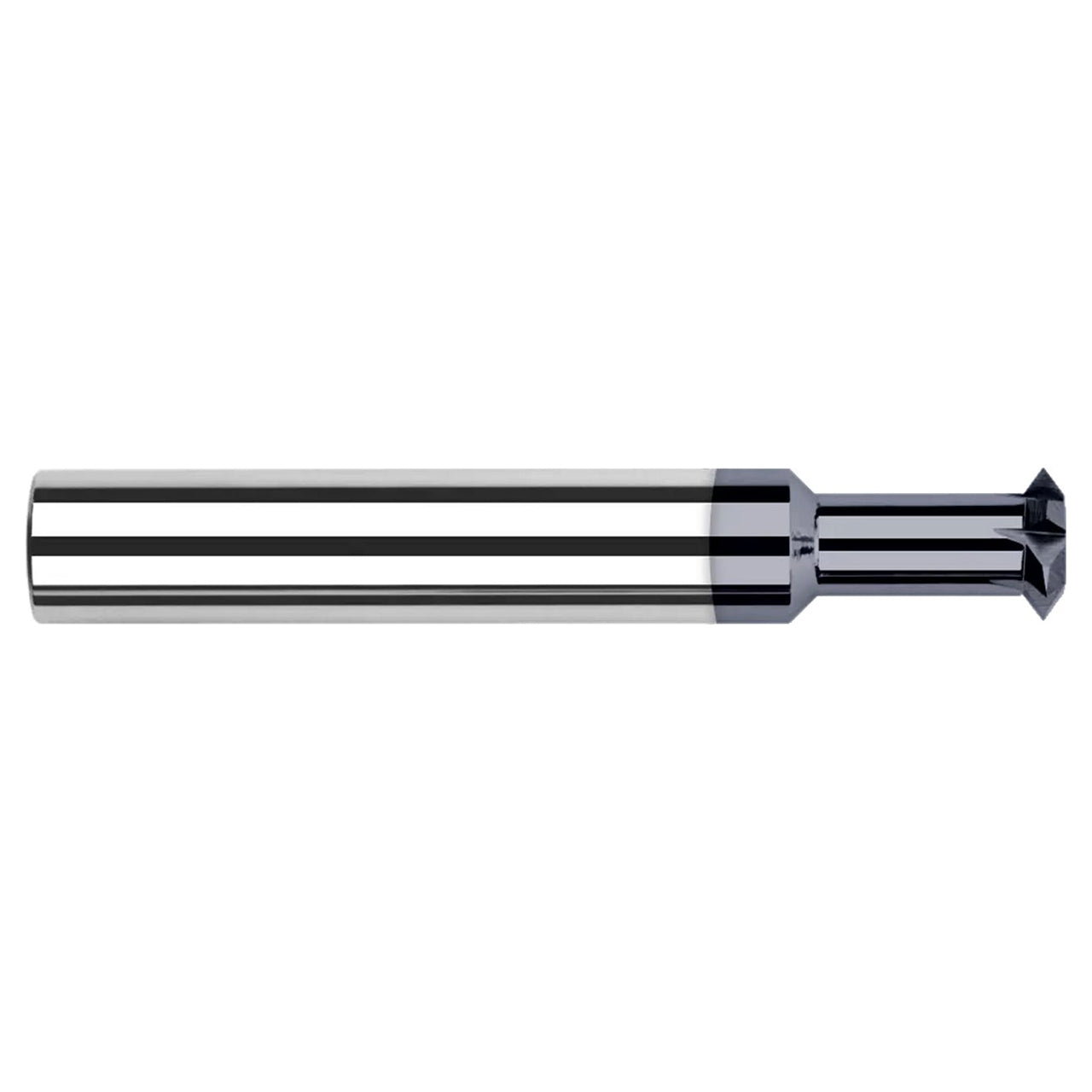

Harvey Tool 71604-C3 | 0.0310" (1/32) Diameter x 0.0150" (1/64) Width x 0.1250" (1/8) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

Harvey Tool 71604-C3 | 0.0310" (1/32) Diameter x 0.0150" (1/64) Width x 0.1250" (1/8) Shank x 90 Degree AlTiN Coated Carbide Double Angle Cutter

SKU: 25211195

$58.80 USD
$58.80 USD $58.80 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details

Double Angle Shank Cutters - Pointed are ideal for back chamfering, chamfering, deburring, and milling a "V-groove" into a part. Its reduced neck allows for long reach machining operations

  • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
  • Reduced neck for long reach machining
  • Tip of included angle ground to a point
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number 71604-C3
Cutter Diameter (Inch) 0.0310" (1/32)
Neck Diameter (Inch) 0.0160" (.4 mm)
Cutter Width (Inch) 0.0150" (1/64)
Neck Length (Inch) 0.1250" (1/8)
Overall Length (Inch) 1.5000" (1-1/2)
Angle per Side 45
Included Angle 90
Flutes 2
Type I
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
