Product Specifications
| Manufacturer Part Number | 715812-C3 |
| Cutter Diameter (Decimal Inch) | 0.187" |
| Cutter Diameter (Inch) | 3/16" |
| Neck Diameter (Decimal Inch) | 0.127" |
| Length of Cut (Decimal Inch) | 0.285" |
| Overall Reach (Decimal Inch) | 1.000" |
| Overall Reach (Inch) | 1" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Corner Radius (Decimal Inch) | 0.010" |
| Angle per Side (Degree) | 5 Degree |
| Included Angle (Degree) | 10 Degree |
| Number of Flute | 4 |
| LOC Multiple | (1.5x) |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Metric | No |
| Coating | C3 |

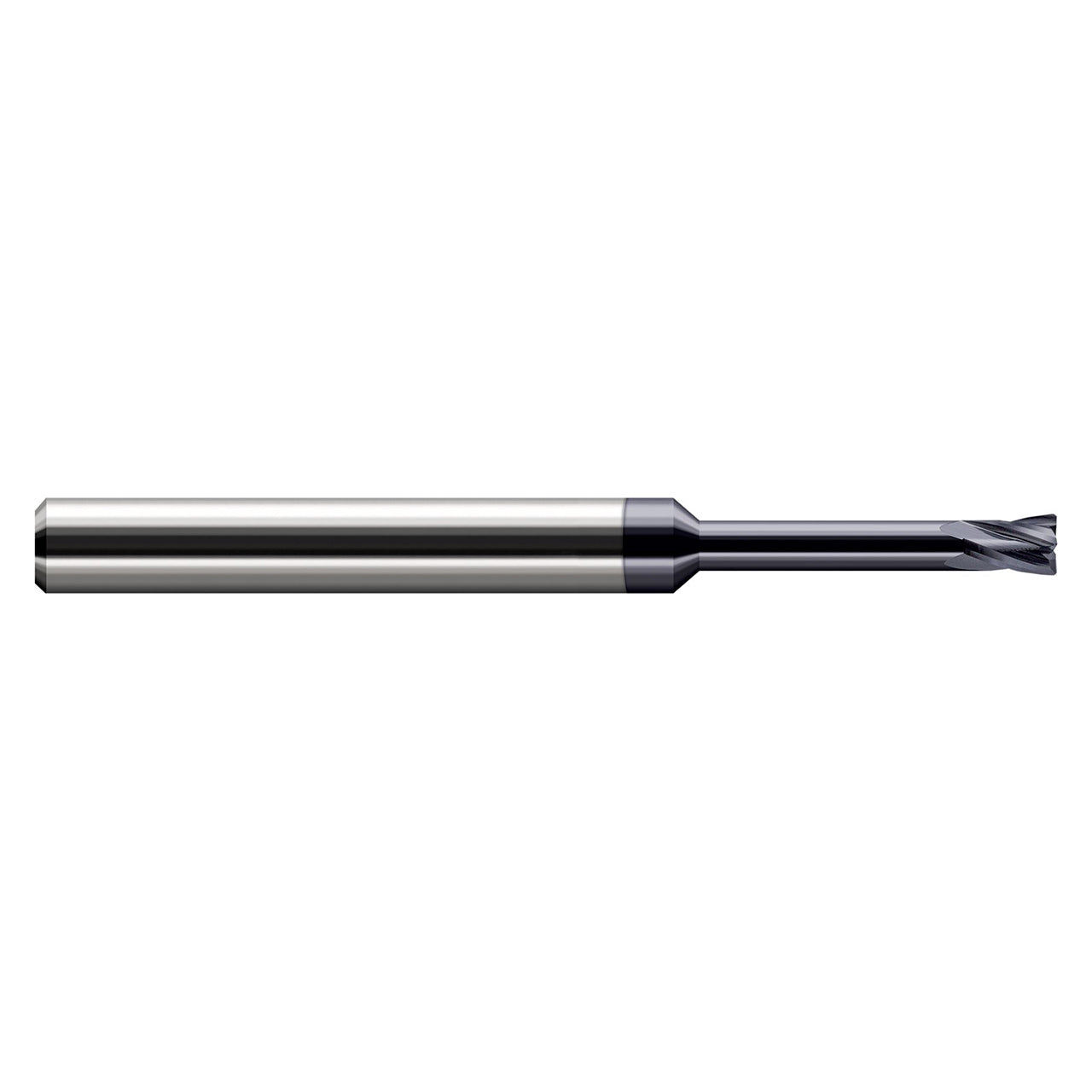

| Product Type | Corner Radius End Mill |
