Product Specifications
| Manufacturer Part Number | 715408 |
| Drill Diameter (Decimal Inch) | 0.125" |
| Drill Diameter (Inch) | 1/8" |
| Flute Length (Decimal Inch) | 0.187" |
| Flute Length (Inch) | 3/16" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Angle per Side (Degree) | 70 Degree |
| Included Angle (Degree) | 140 Degree |
| Number of Flute | 2 |
| LOC Multiple | (1.5x) |
| Web Thickness (Decimal Inch) | 0.010" |
| Type | II |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | Uncoated |

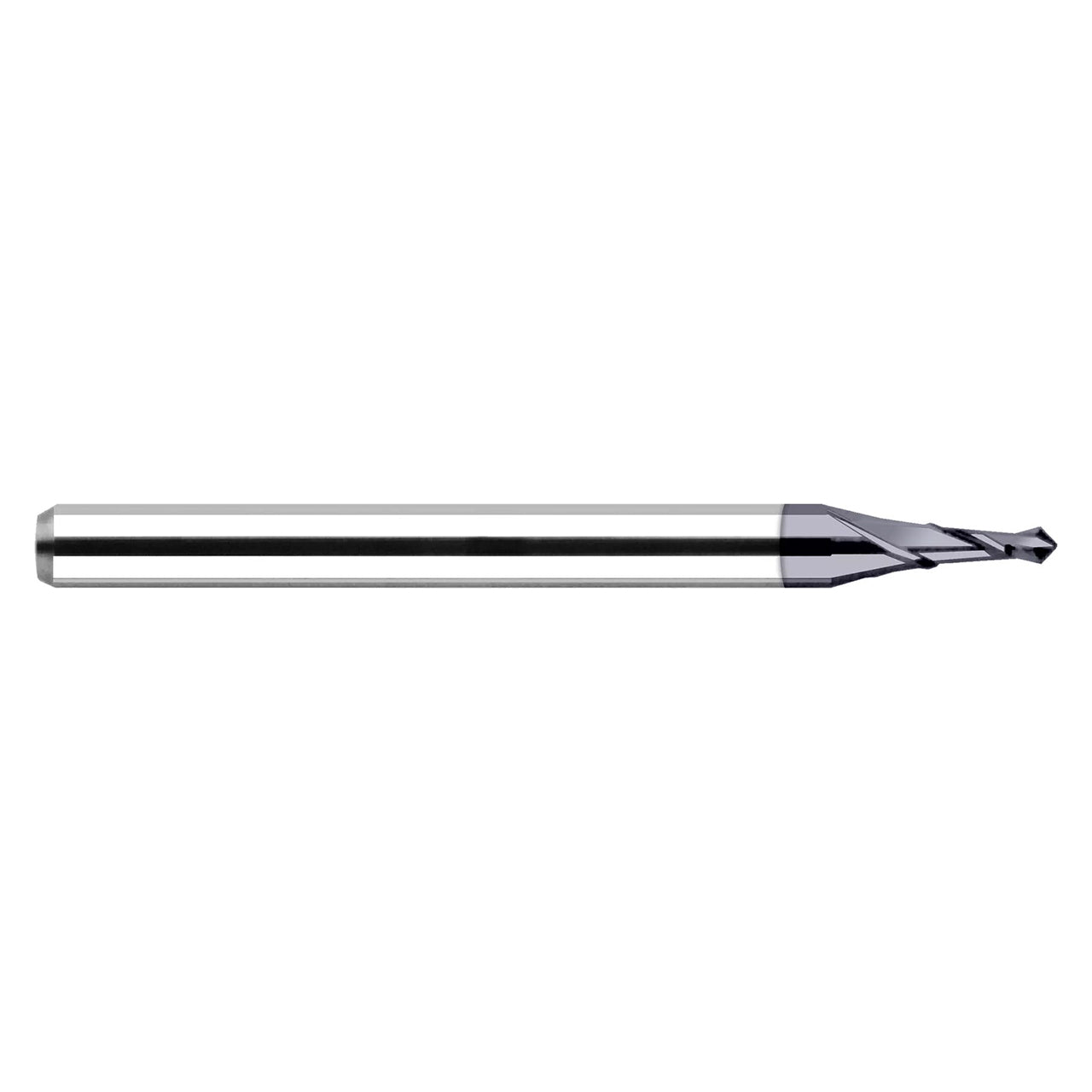

| Product Type | Spotting Drill |
