Product Specifications
| Manufacturer Part Number | 714599 |
| Cutter Diameter (Decimal Inch) | 0.125" |
| Cutter Diameter (Inch) | 1/8" |
| Length of Cut (Decimal Inch) | 1.250" |
| Length of Cut (Inch) | 1-1/4" |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (Inch) | 4" |
| Corner Radius (Decimal Inch) | 0.005" |
| Angle per Side (Degree) | 5 Degree |
| Included Angle (Degree) | 10 Degree |
| Number of Flute | 3 |
| LOC Multiple | (10x) |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Metric | No |
| Coating | Uncoated |

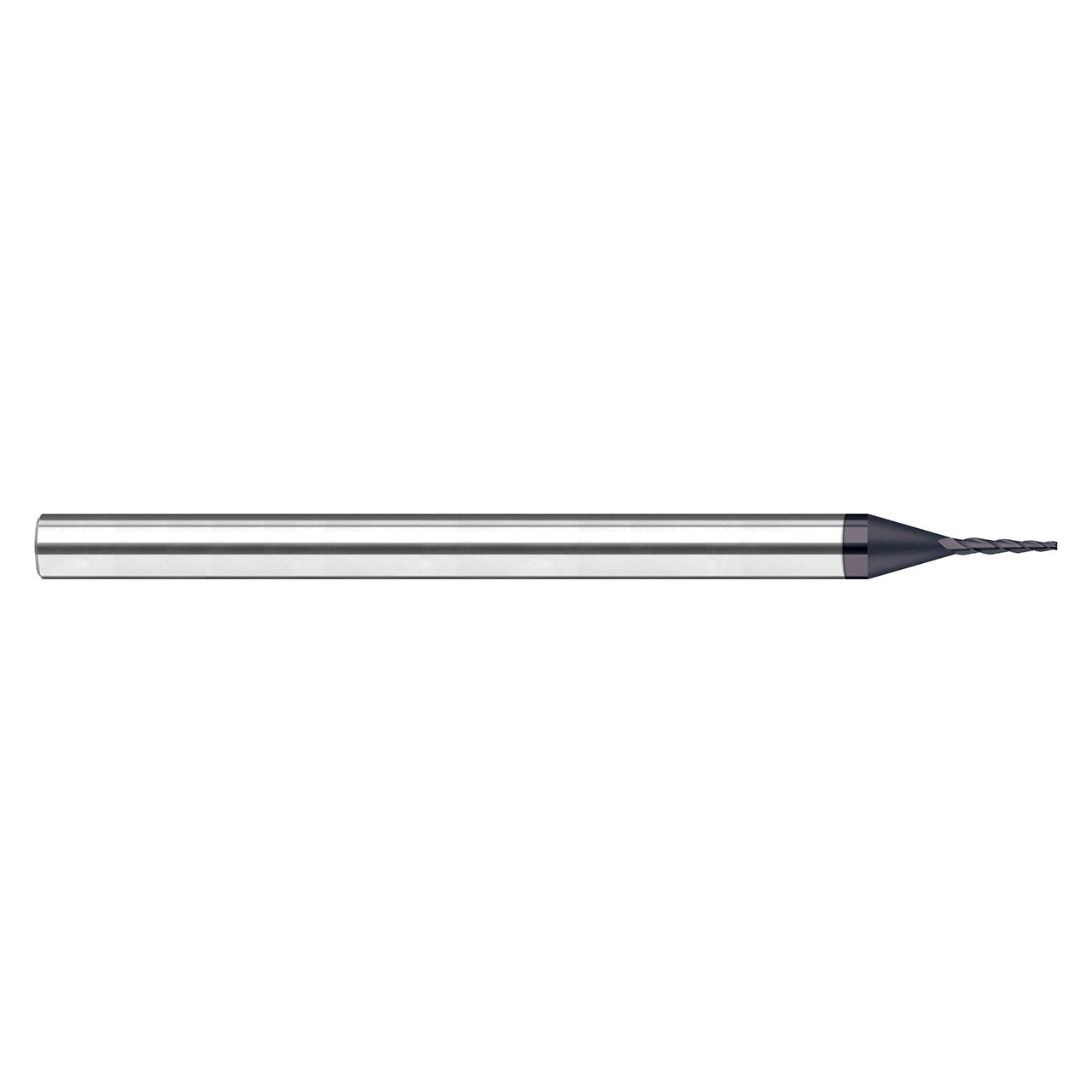

| Product Type | Tapered Corner Radius End Mill |
