Product Specifications
| Manufacturer Part Number | 697793-C3 |
| Diameter (Inch) | 3/32" |
| Diameter (Decimal Inch) | 0.093" |
| Length of Cut (Decimal Inch) | 0.074" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Corner Radius (Decimal Inch) | 0.020" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | AlTiN |

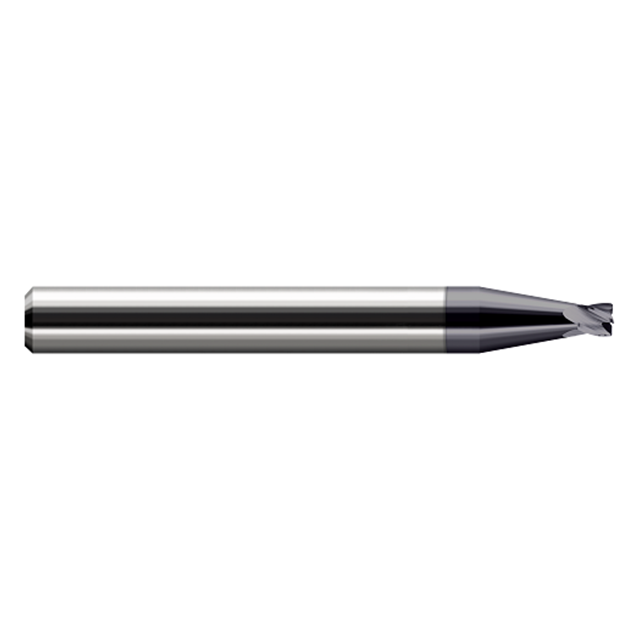

| Product Type | Miniature Corner Radius End Mill |
