Product Specifications
| Manufacturer Part Number | 696962-C3 |
| Diameter (Inch) | 1/16" |
| Diameter (Decimal Inch) | 0.062" |
| Neck Diameter (Decimal Inch) | 0.061" |
| Length of Cut (Decimal Inch) | 0.186" |
| Overall Reach (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 0.500" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Corner Radius (Inch) | 1/64" |
| Corner Radius (Decimal Inch) | 0.015" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | AlTiN |

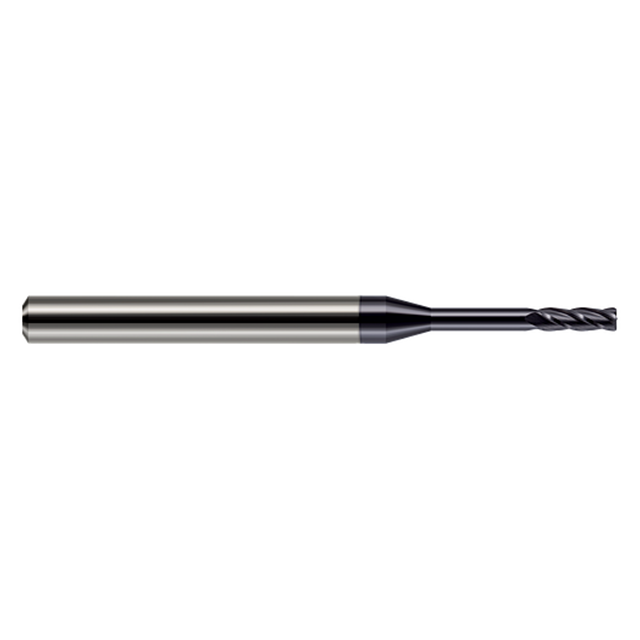

| Product Type | Miniature Corner Radius End Mill |
