Product Specifications
| Manufacturer Part Number | 694104-C6 |
| Diameter (Inch) | 1/16" |
| Diameter (Decimal Inch) | 0.063" |
| Neck Diameter (Decimal Inch) | 0.037" |
| Length of Cut (Decimal Inch) | 0.053" |
| Neck Length (Inch) | 5/16" |
| Neck Length (Decimal Inch) | 0.312" |
| Overall Reach (Decimal Inch) | 0.365" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Radius (Decimal Inch) | 0.031" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Wrap Angle (Degree) | 270 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | AlTiN Nano |

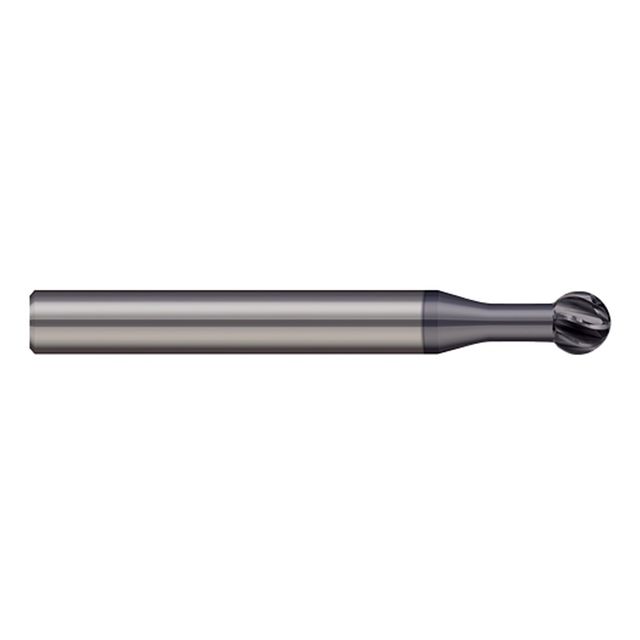

| Product Type | Undercutting End Mill |
