Product Specifications
| Manufacturer Part Number | 693705-C3 |
| Diameter (Inch) | 5/64" |
| Diameter (Decimal Inch) | 0.078" |
| Neck Diameter (Decimal Inch) | 0.035" |
| Neck Diameter (mm) | 0.90mm |
| Length of Cut (Decimal Inch) | 0.067" |
| Neck Length (Inch) | 1/2" |
| Neck Length (Decimal Inch) | 0.500" |
| Overall Reach (Decimal Inch) | 0.567" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.000" |
| Radius (Decimal Inch) | 0.039" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Right Hand Teeth | 15 |
| Left Hand Teeth | 12 |
| Wrap Angle (Degree) | 270 Degree |
| Material | Carbide |
| Coating | AlTiN |

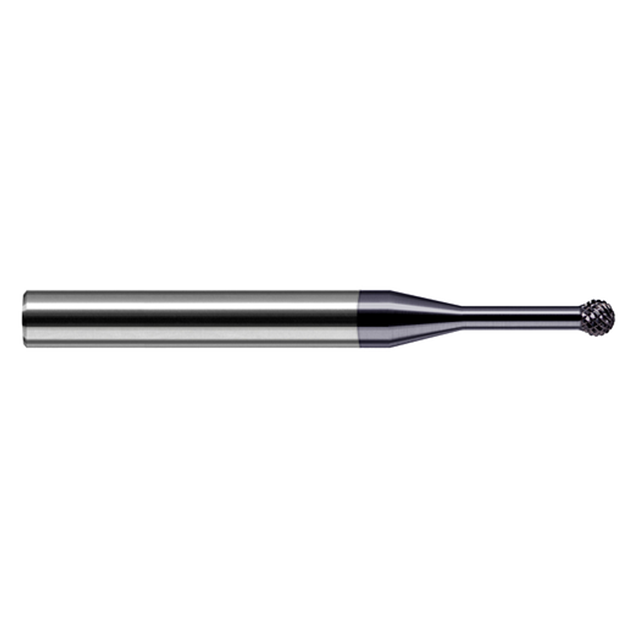

| Product Type | Deburring Undercut End Mill |
