Product Specifications
| Manufacturer Part Number | 693704-C3 |
| Diameter (Inch) | 1/16" |
| Diameter (Decimal Inch) | 0.062" |
| Neck Diameter (Decimal Inch) | 0.032" |
| Length of Cut (Decimal Inch) | 0.053" |
| Neck Length (Inch) | 3/8" |
| Neck Length (Decimal Inch) | 0.375" |
| Overall Reach (Decimal Inch) | 0.428" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Radius (Inch) | 1/32" |
| Radius (Decimal Inch) | 0.031" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Right Hand Teeth | 15 |
| Left Hand Teeth | 12 |
| Wrap Angle (Degree) | 270 Degree |
| Material | Carbide |
| Coating | AlTiN |

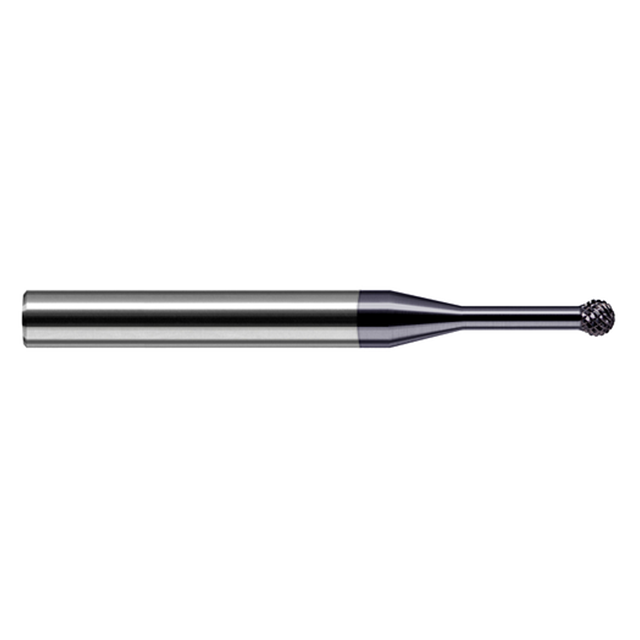

| Product Type | Deburring Undercut End Mill |
