Product Specifications
| Manufacturer Part Number | 692545-C3 |
| Neck Diameter (Inch) | 3/32" |
| Neck Diameter (Decimal Inch) | 0.093" |
| Length of Cut (Inch) | 3/64" |
| Length of Cut (Decimal Inch) | 0.047" |
| Overall Reach (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 0.500" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Tip (Decimal Inch) | 0.002" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Angle per Side (Degree) | 45 Degree |
| Included Angle (Degree) | 90 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | AlTiN |

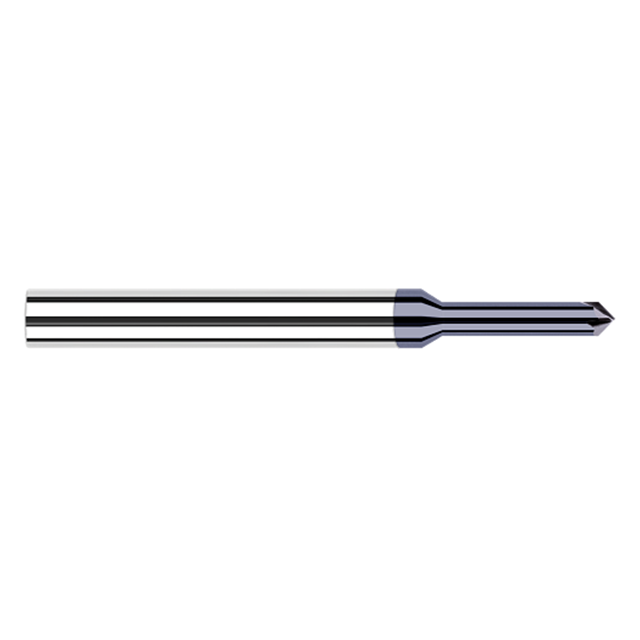

| Product Type | Pointed Chamfer Cutter |
