Product Specifications
| Manufacturer Part Number | 692480-C3 |
| Head Diameter (Inch) | 1/2" |
| Head Diameter (Decimal Inch) | 0.500" |
| Neck Diameter (Decimal Inch) | 0.317" |
| Length of Cut (Inch) | 5/32" |
| Length of Cut (Decimal Inch) | 0.156" |
| Neck Length (Inch) | 1" |
| Neck Length (Decimal Inch) | 1.000" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 6 |
| Material | Carbide |
| Coating | AlTiN |

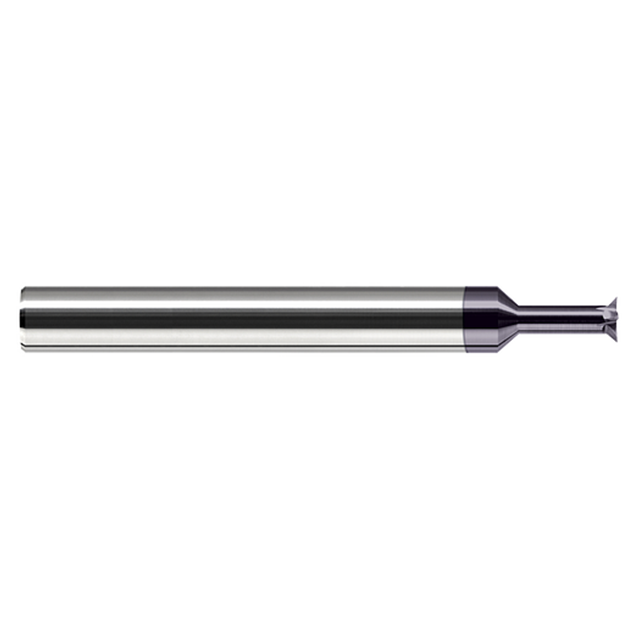

| Product Type | Back Chamfer Cutter |
