Product Specifications
| Manufacturer Part Number | 692470-C3 |
| Head Diameter (Inch) | 3/8" |
| Head Diameter (Decimal Inch) | 0.375" |
| Neck Diameter (Decimal Inch) | 0.237" |
| Length of Cut (Decimal Inch) | 0.118" |
| Neck Length (Inch) | 3/4" |
| Neck Length (Decimal Inch) | 0.750" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.375" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Number of Flutes | 6 |
| Material | Carbide |
| Coating | AlTiN |

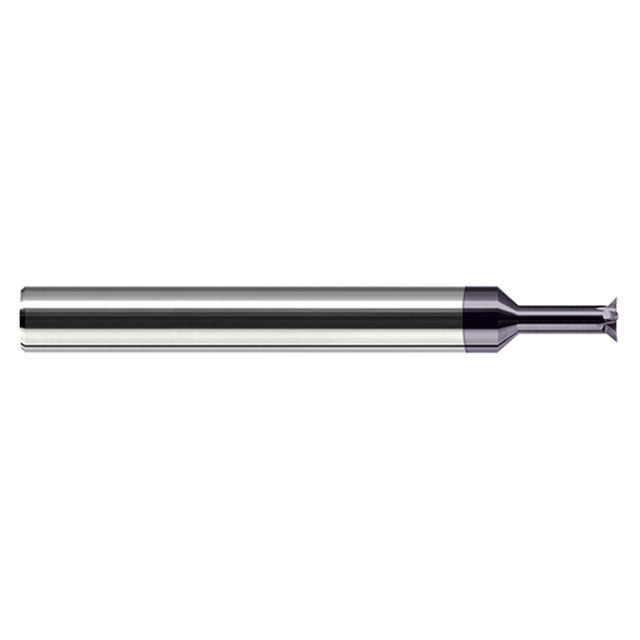

| Product Type | Back Chamfer Cutter |
