Product Specifications
| Manufacturer Part Number | 690693-C3 |
| Cutter Diameter (Decimal Inch) | 0.0930" |
| Cutter Diameter (Inch) | 3/32" |
| Neck Diameter (Decimal Inch) | 0.0915" |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1/2" |
| Overall Reach (Decimal Inch) | 0.7500" |
| Overall Reach (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Number of Flutes | 4 |
| LOC Multiple | (5x) |
| Reach Multiple | (8x) |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Coating | C3 |

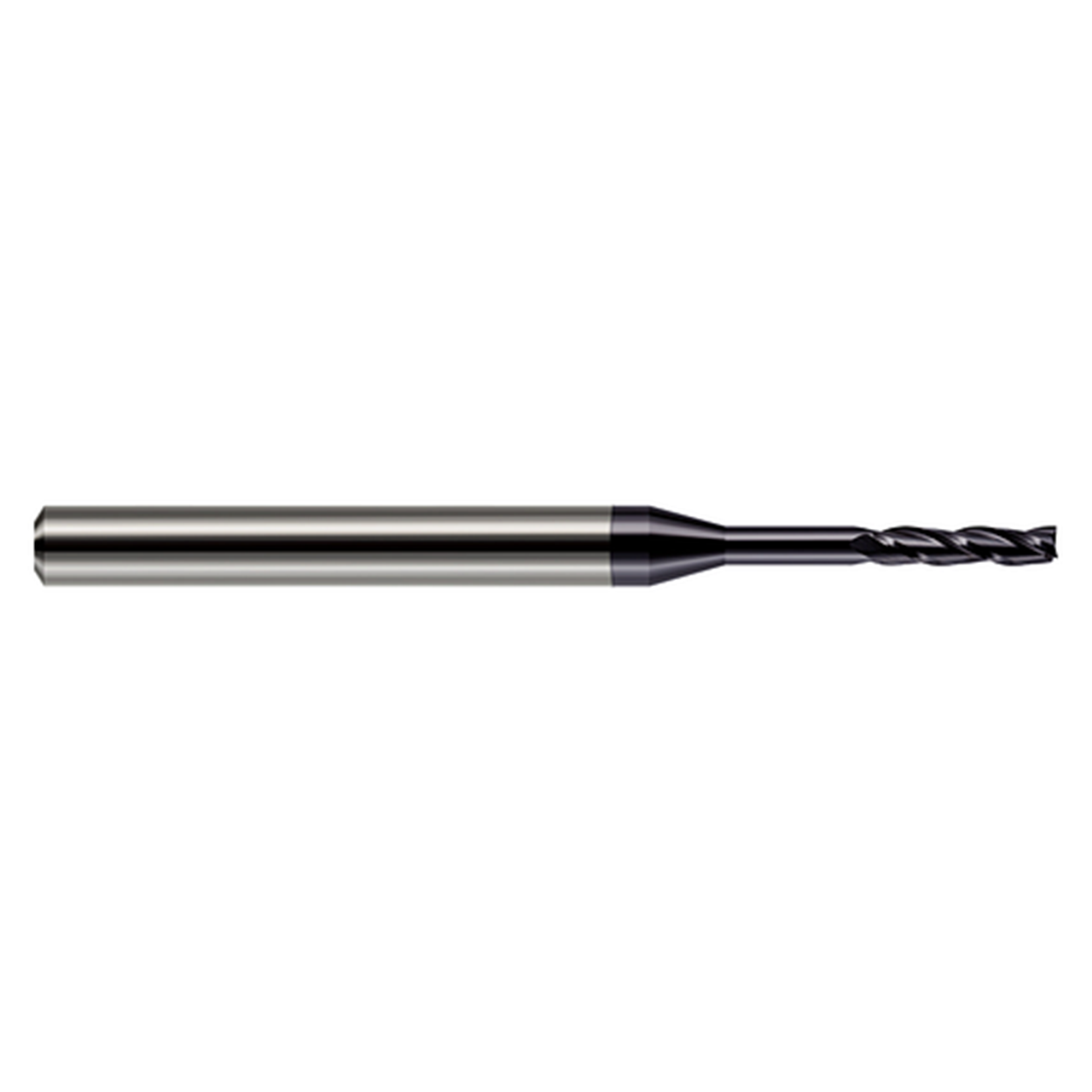

| Product Type | Miniature Square End Mill |
