Product Specifications
| Manufacturer Part Number | 678031-C3 |
| Cutter Diameter (Decimal Inch) | 0.0310" |
| Cutter Diameter (Inch) | 1/32" |
| Neck Diameter (Decimal Inch) | 0.0300" |
| Length of Cut (Decimal Inch) | 0.0930" |
| Length of Cut (Inch) | 3/32" |
| Neck Length (Decimal Inch) | 0.0630" |
| Overall Reach (Decimal Inch) | 0.1560" |
| Overall Reach (Inch) | 5/32" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (Inch) | 1-1/2" |
| Number of Flutes | 3 |
| LOC Multiple | (3x) |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Coating | C3 |

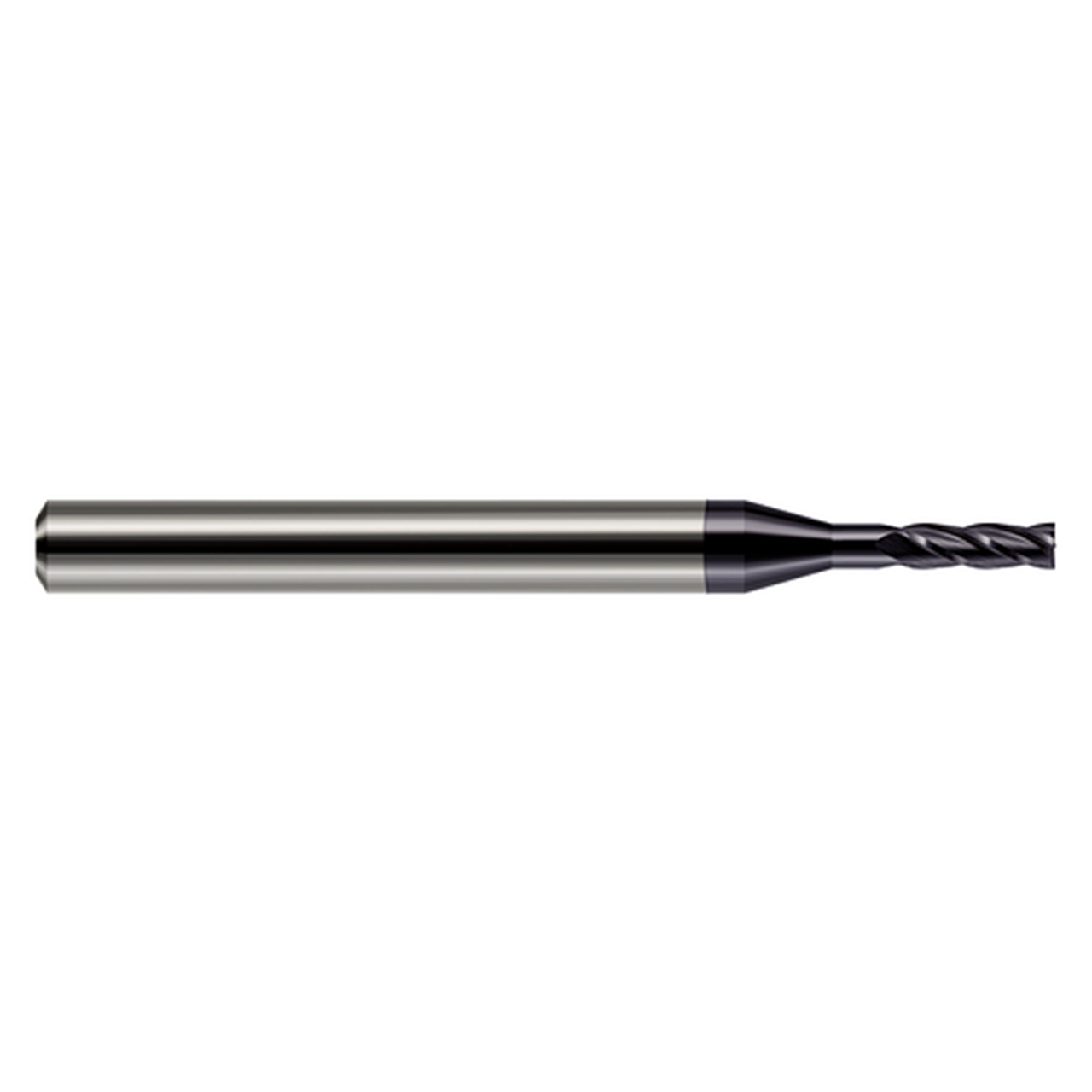

| Product Type | Miniature Square End Mill |
