Product Specifications
| Manufacturer Part Number | 675860 |
| Cutter Diameter (Decimal Inch) | 0.2450" |
| Neck Diameter (Decimal Inch) | 0.1320" |
| Length of Cut (Decimal Inch) | 0.0560" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Maximum Depth of Thread (Decimal Inch) | 0.7500" |
| Maximum Depth of Thread (Inch) | 3/4" |
| Tip Flat (Decimal Inch) | 0.0263" |
| Angle per Side (Degree) | 14.5 Degree |
| Included Angle (Degree) | 29 Degree |
| Number of Flutes | 4 |
| Size | 3/8",7/16"-12 |
| Reach Multiple | (5x) |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Coating | Uncoated |

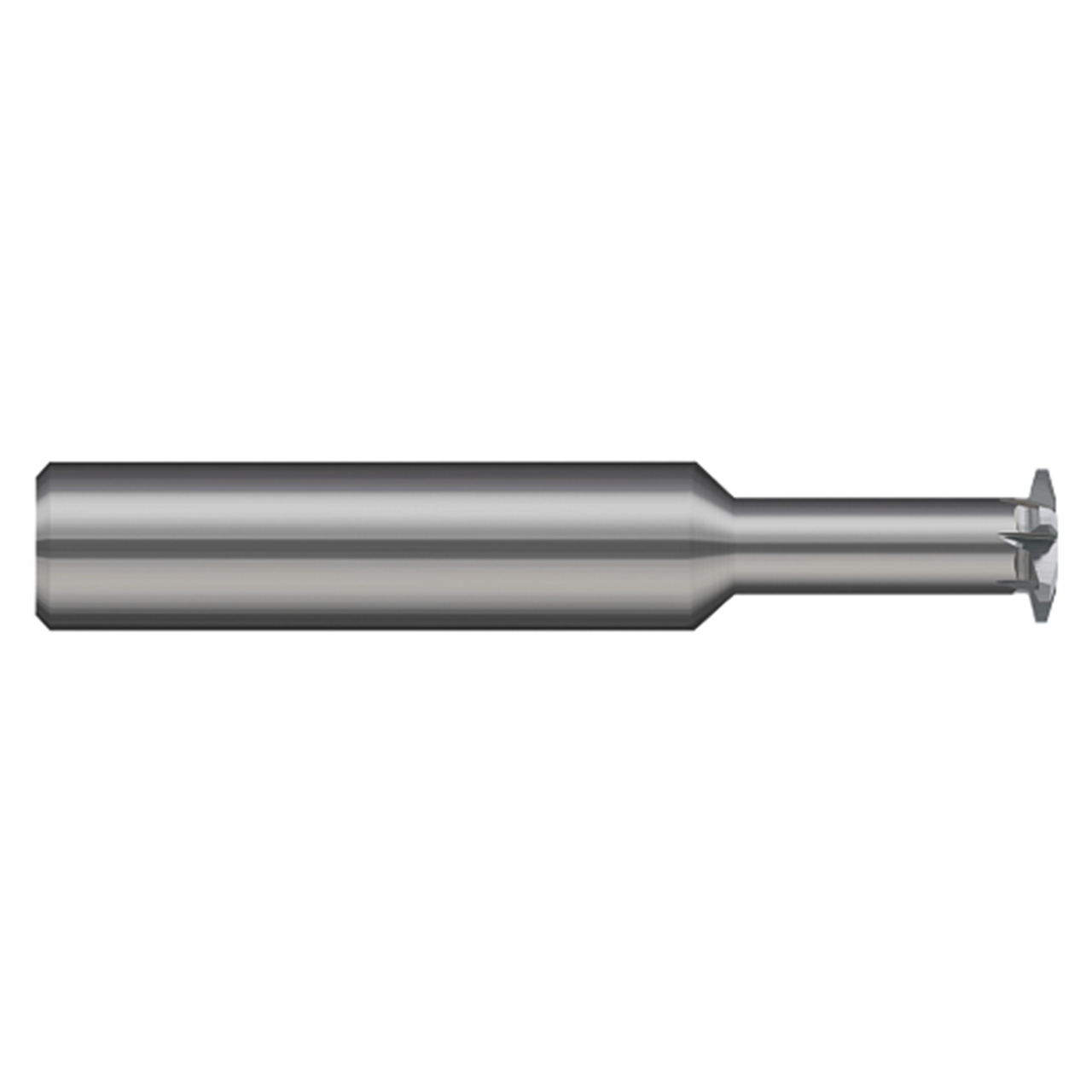

| Product Type | Thread Milling Cutter |
