Product Specifications
| Manufacturer Part Number | 675078-C12 |
| Cutter Diameter (Decimal Inch) | 0.0781" |
| Cutter Diameter (Inch) | 5/64" |
| Neck Diameter (Decimal Inch) | 0.0765" |
| Length of Cut (Decimal Inch) | 0.0620" |
| Length of Cut (Inch) | 1/16" |
| Overall Reach (Decimal Inch) | 0.6250" |
| Overall Reach (Inch) | 5/8" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Number of Flutes | 4 |
| LOC Multiple | (0.8x) |
| Reach Multiple | (8x) |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Coating | C12 |

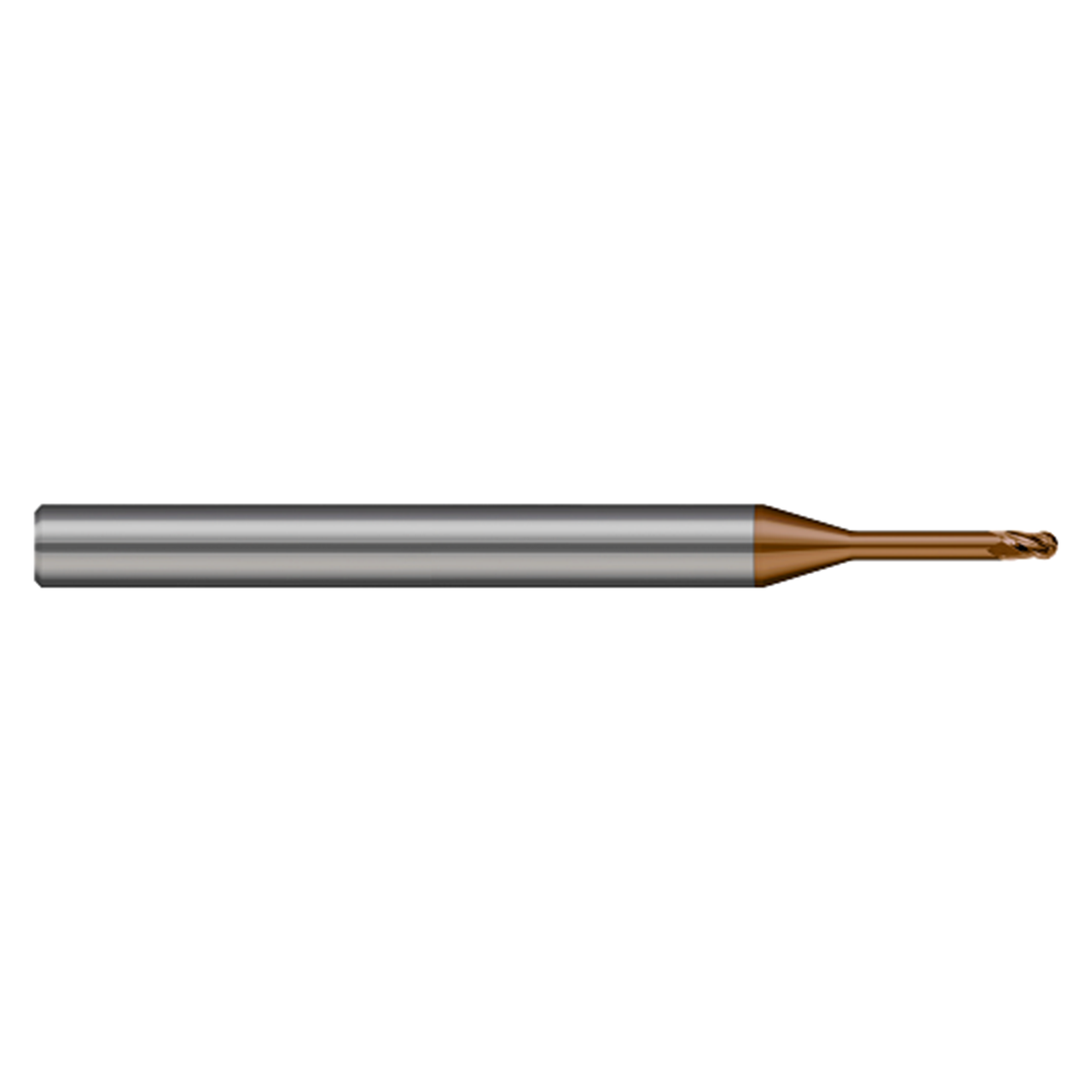

| Product Type | Ball End Mill |
