Product Specifications
| Manufacturer Part Number | 674716-C12 |
| Cutter Diameter (Decimal Inch) | 0.2500" |
| Cutter Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.2460" |
| Length of Cut (Decimal Inch) | 0.2000" |
| Overall Reach (Decimal Inch) | 2.0000" |
| Overall Reach (Inch) | 2" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Corner Radius (Decimal Inch) | 0.0050" |
| Number of Flutes | 4 |
| LOC Multiple | (0.8x) |
| Reach Multiple | (8x) |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Coating | C12 |

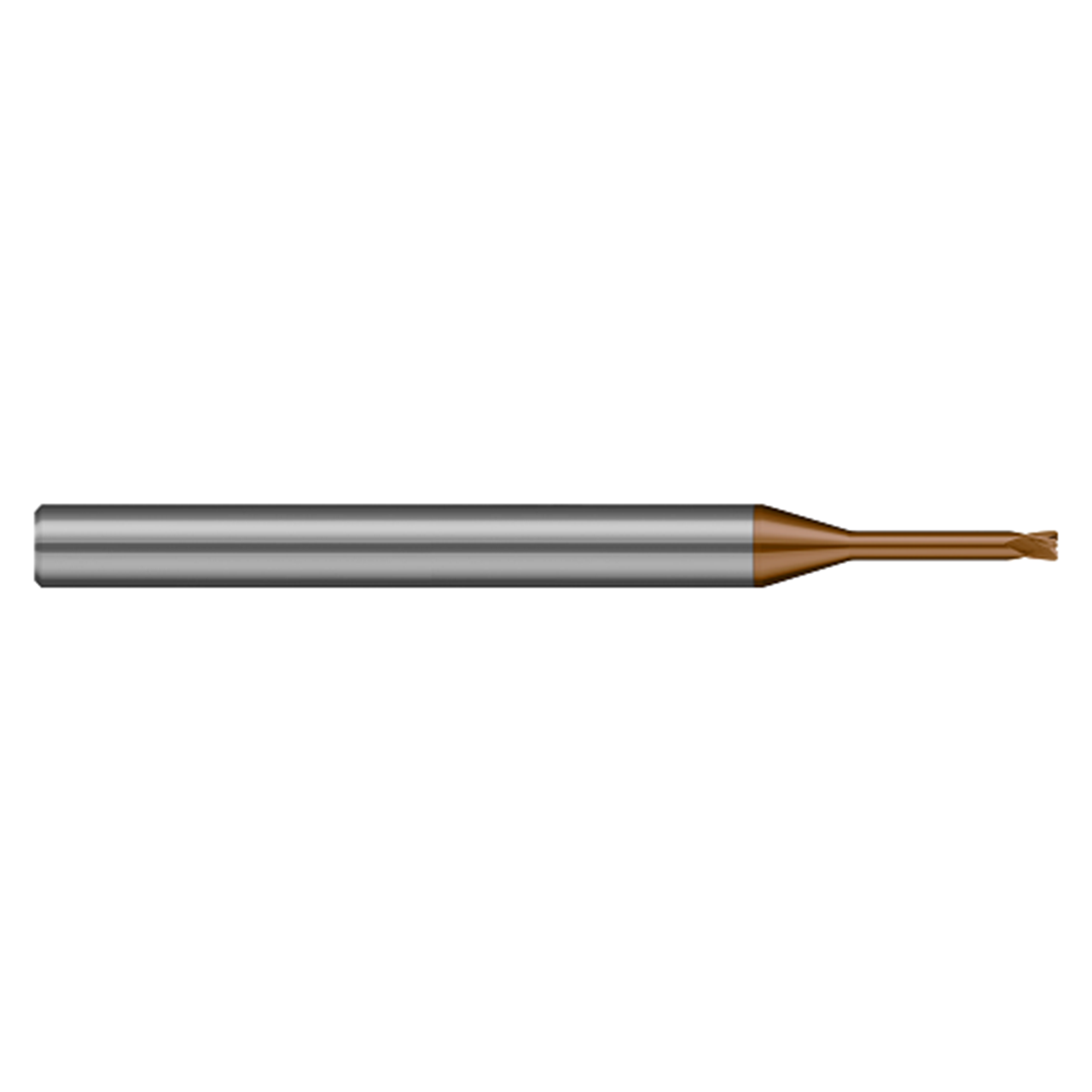

| Product Type | Corner Radius End Mill |
