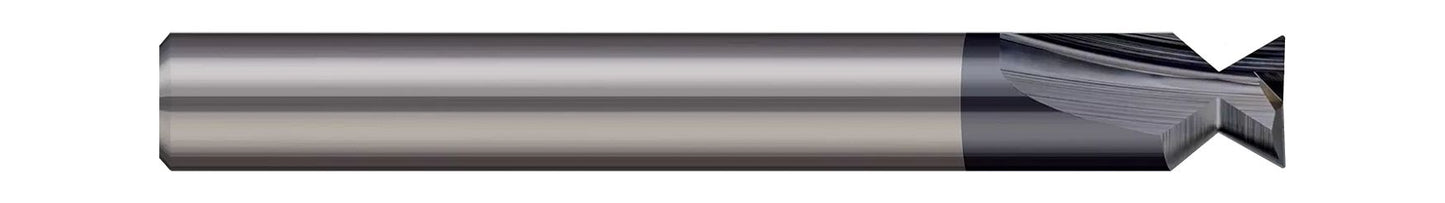

Offered with a sharp corner, .005" or .010" corner radius, Harvey Tool's expansive offering of solid carbide, fully stocked Dovetail Cutters is the industry's best.
- Offered with sharp corner .003", .005", or .010" Corner Radius
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Neck Diameter (Inch) | 0.1380" (3.5 mm) |
| Length of Cut (Inch) | 0.1560" (5/32) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Number of Flutes | 3 |
| Corner Radius | 0.0050" |
| Angle per Side | 30 |
| Included Angle | 60 |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Coating/Finish | C3 |
