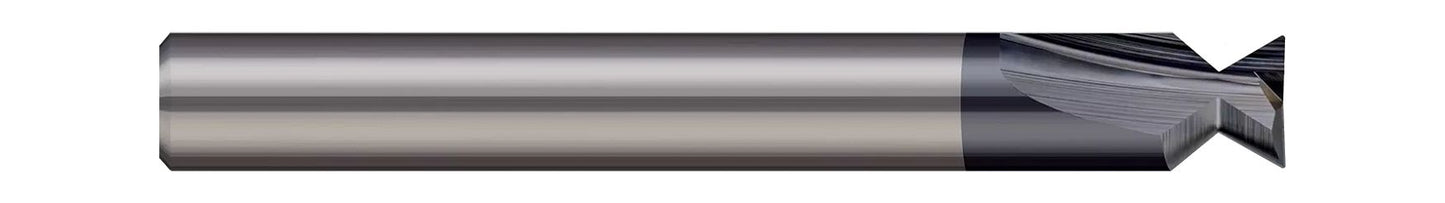

Offered with a sharp corner, .005" or .010" corner radius, Harvey Tool's expansive offering of solid carbide, fully stocked Dovetail Cutters is the industry's best.
- Offered with sharp corner .003", .005", or .010" Corner Radius
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.2500" (1/4) |
| Neck Diameter (Inch) | 0.1630" |
| Length of Cut (Inch) | 0.2500" (1/4) |
| Overall Length (Inch) | 2.0000" (2) |
| Number of Flutes | 2 |
| Corner Radius | 0.0050" |
| Angle per Side | 10 |
| Included Angle | 20 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating/Finish | C3 |
