Harvey Tool

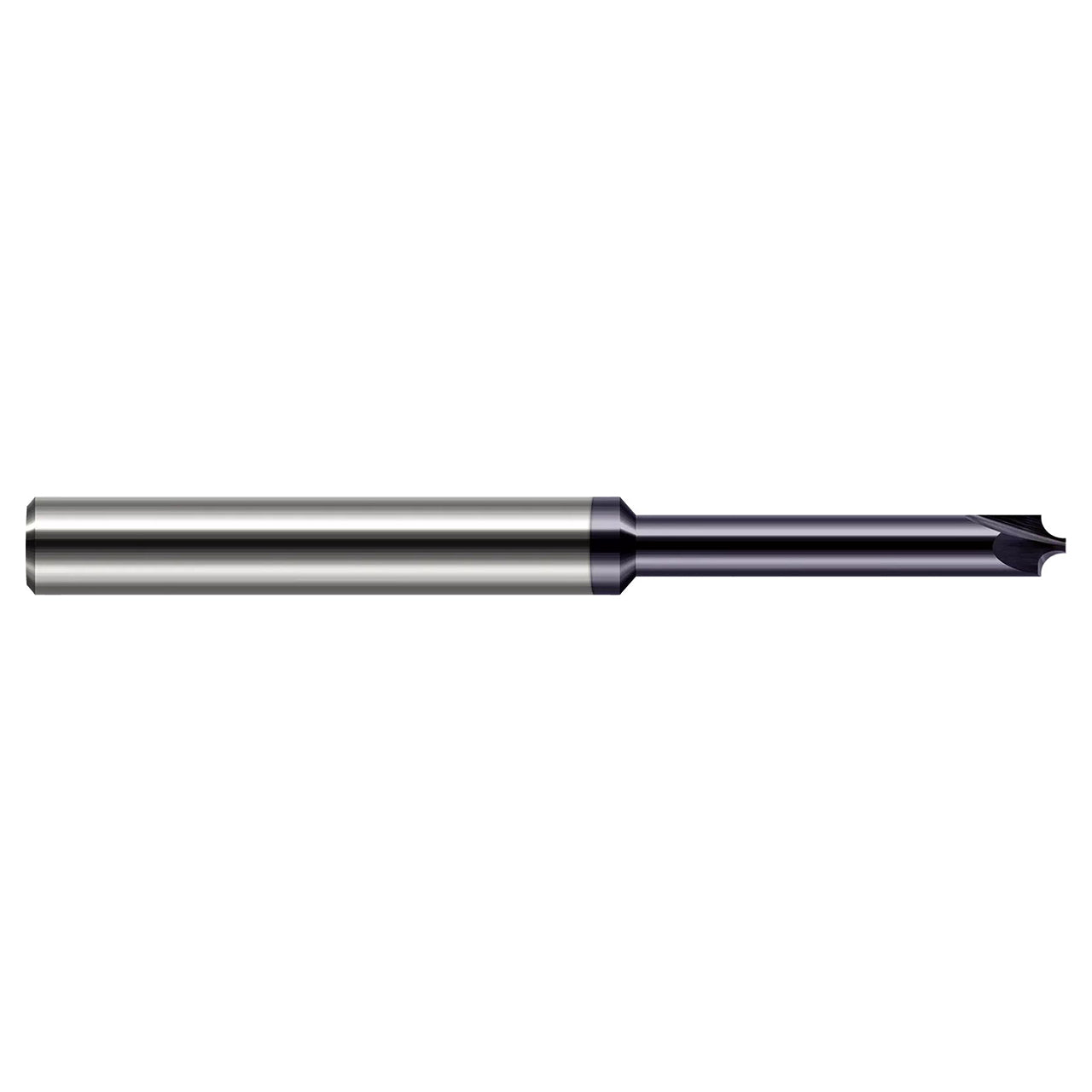

Harvey Tool 57308-C3 | 0.0100" Diameter x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes AlTiN Coated Carbide Long Reach Flared Corner Rounding End Mill

Harvey Tool 57308-C3 | 0.0100" Diameter x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes AlTiN Coated Carbide Long Reach Flared Corner Rounding End Mill

SKU: 25211185

$50.50 USD
$50.50 USD $50.50 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

Low stock: 8 left

Free Shipping on Orders Over $75

View full details

Reduced diameter for clearance along walls and in small features, this selection of Corner Rounding End Mills - Long Reach - Flared features a small pilot design for miniature holes, narrow slots, and small inside corners.

  • Flares are tangent to radius (flare is blended to radius to ensure smooth form)
  • Small pilot design for miniature holes, narrow slots and small inside corners
  • Reduced diameter for clearance along walls and in small features
  • CNC ground in the USA
  • Solid Carbide
  • 2 Flutes

Product Specifications
Tool Number 57308-C3
Pilot Diameter (Inch) 0.0100"
Pilot Diameter (Inch) 0.0100"
Neck Diameter (Inch) 0.0310" (1/32)
Overall Reach (Inch) 0.3750" (3/8)
Overall Length (Inch) 1.5000" (1-1/2)
Radius (Inch) 0.0080"
Flutes 2
Reach Multiple 12x
Shank Diameter (Inch) 0.1250" (1/8)
Coating C3
Pilot Flare 5
Shoulder Flare 5
