Product Specifications
| Manufacturer Part Number | 55315-C3 |
| Pilot Diameter (Decimal Inch) | 0.020" |
| Pilot Diameter (mm) | 0.50mm |
| Neck Diameter (Decimal Inch) | 0.062" |
| Neck Diameter (Inch) | 1/16" |
| Overall Reach (Decimal Inch) | 0.750" |
| Overall Reach (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Radius (Decimal Inch) | 0.015" |
| Radius (Inch) | 1/64" |
| Number of Flute | 2 |
| Reach Multiple | (12x) |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (Inch) | 1/8" |
| Metric | No |
| Coating | C3 |
| Pilot Flare | 5 |
| Shoulder Flare | 5 |

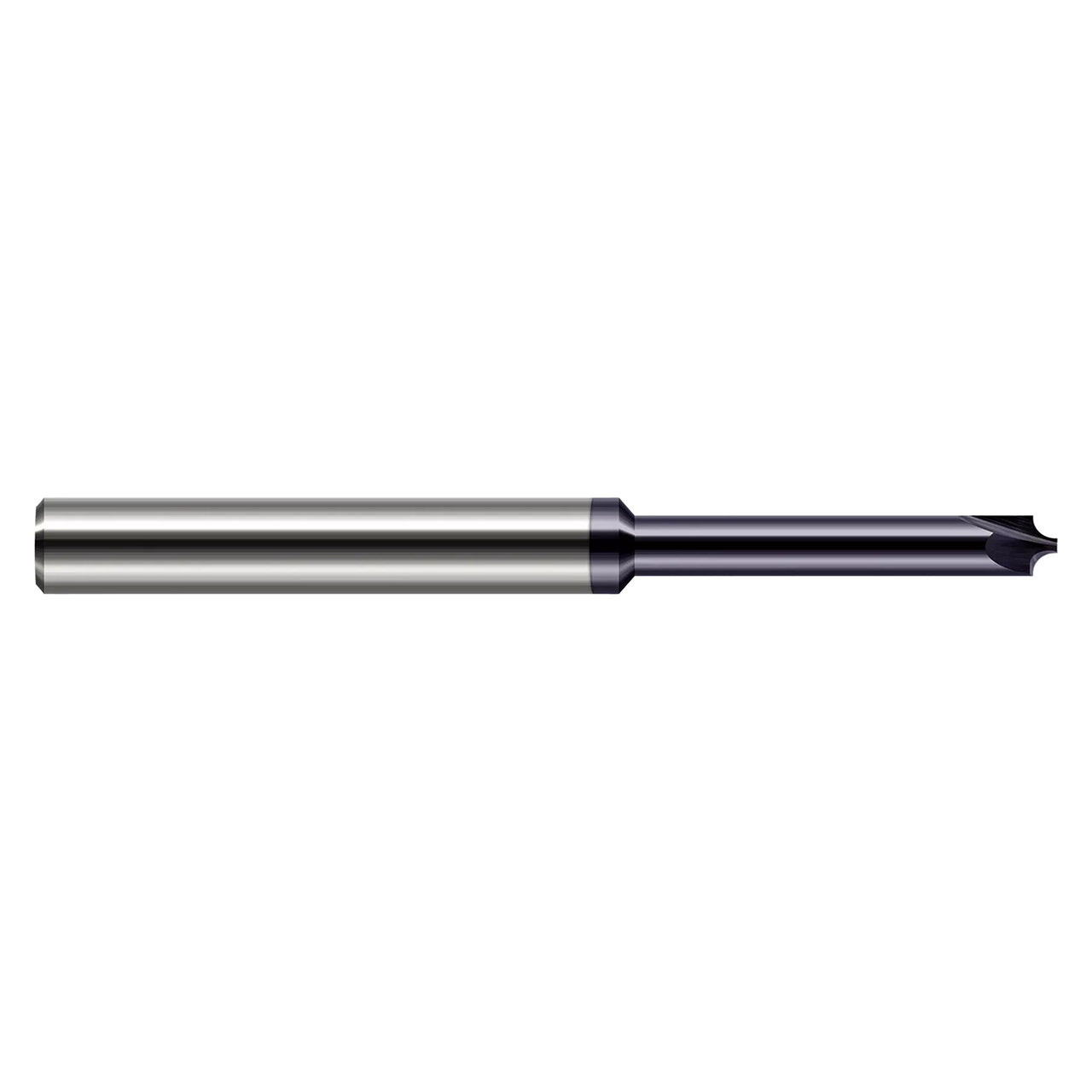

| Product Type | Corner Rounding End Mill |
