Radii options range from 0.005 Inch to 0.031 Inch.
Features- Reduced diameter for clearance along walls and in small features
- Small pilot design for miniature holes, narrow slots and small inside corners
- Flares are tangent to radius (flare is blended to radius to ensure smooth form)
- Axial depth of cut = radius plus 0.005 Inch
- 2 Flutes
- Solid carbide
- CNC ground in the USA
Product Specifications

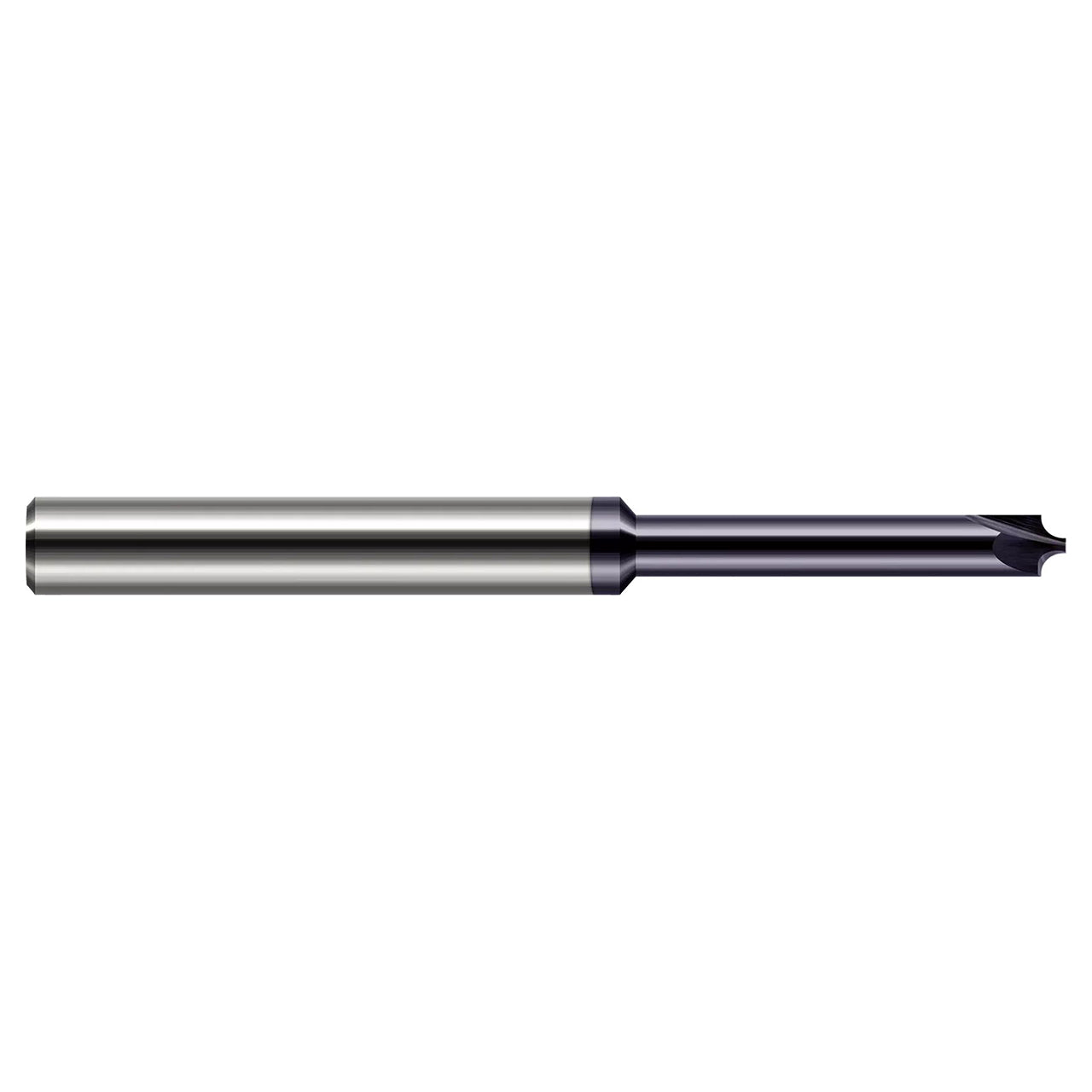

| Manufacturer Part Number | 54330-C3 |
| Pilot Flare | 5 |
| Pilot Diameter (Inch) | 0.0200" |
| Pilot Diameter (mm) | 0.5mm |
| Neck Diameter (Inch) | 0.0930" (3/32) |
| Overall Reach (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 2.0000" (2) |
| Radius (Inch) | 0.0300" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Shoulder Flare | 5 |
| Number of Flutes | 2 |
| Reach Multiple | (12x) |
| Coating | C3 |
| Profile | Corner Rounder |
