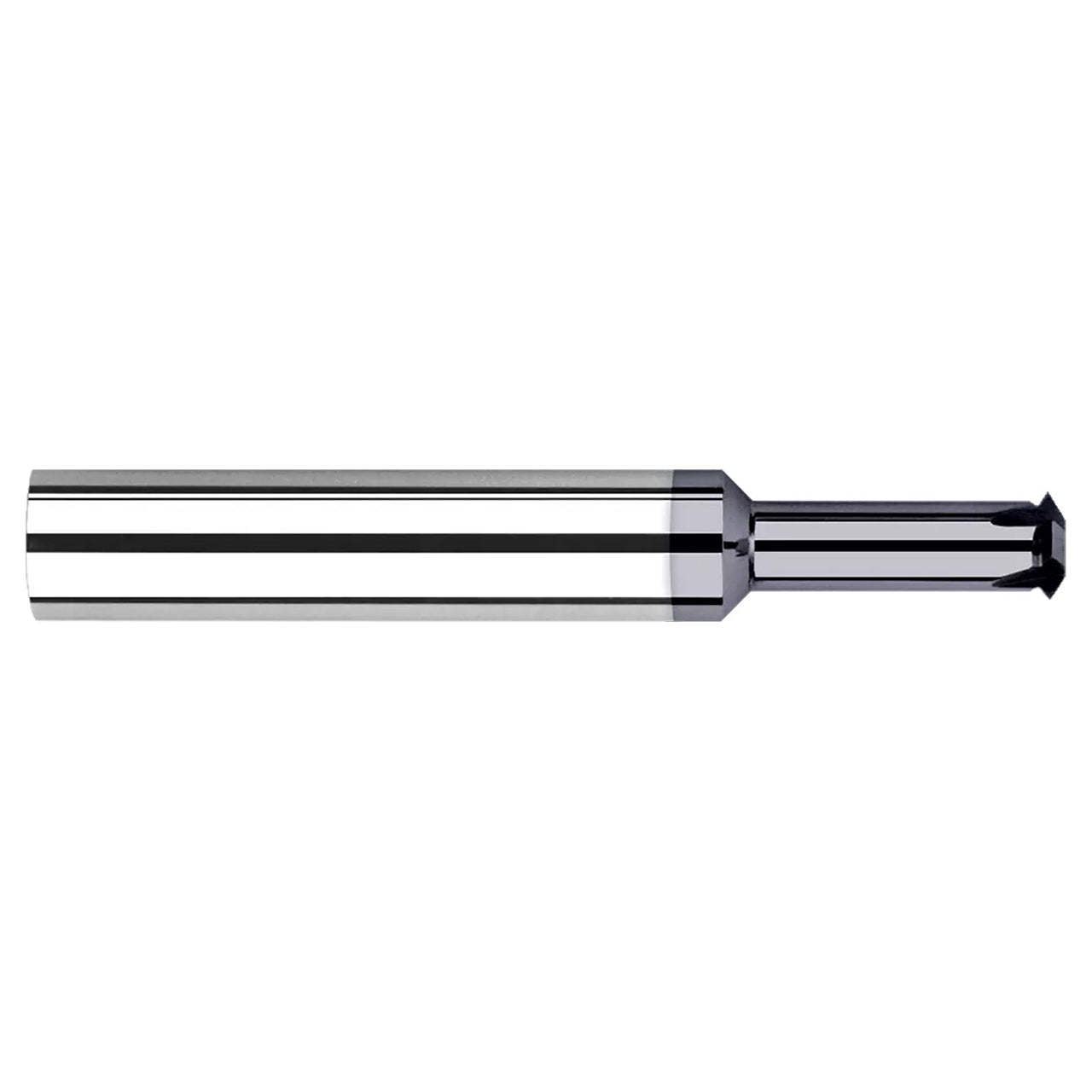

Harvey Tool Thread Milling Cutters - Single Form - UN Threads can mill multiple pitches, and cut internal and external
- Tip of included angle ground to a point
- Mills right hand and left hand threads
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 54290-C3 |
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Neck Diameter (Inch) | 0.4200" |
| Length of Cut (Inch) | 0.1150" |
| Overall Length (Inch) | 4.0000" (4) |
| Max Depth of Thread (Inch) | 2.2500" (2-1/4) |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flutes | 6 |
| Size | 1 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Coating | C3 |
