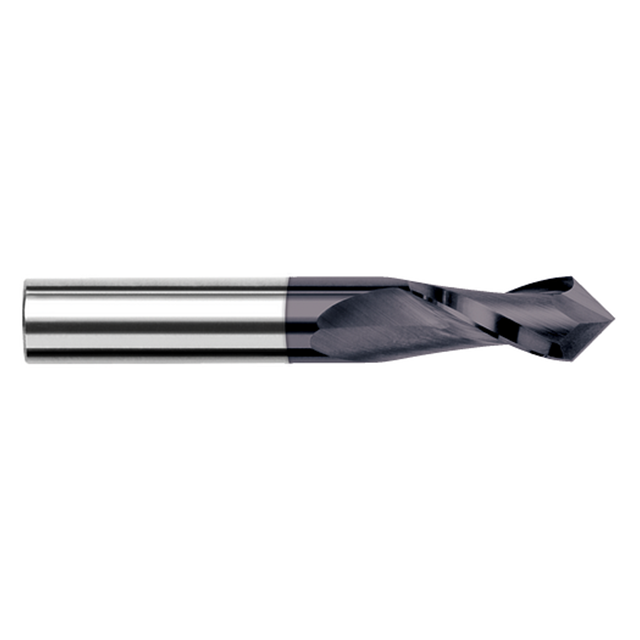

Product Specifications
| Manufacturer Part Number | 46567-C3 |
| Diameter (Decimal Inch) | 0.020" |
| Diameter (mm) | 0.50mm |
| Length of Cut (Decimal Inch) | 0.063" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Web Thickness (Decimal Inch) | 0.002" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Included Angle (Degree) | 90 Degree |
| Point Angle (Degree) | 90 Degree |
| Number of Flutes | 2 |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Drill/End Mill |
