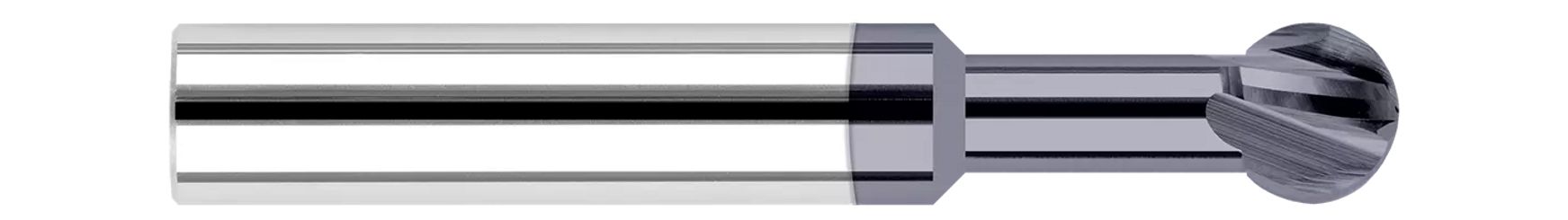

The 270 Degree spherical ball on this solid carbide Undercutting End Mill is ideal for deburring complex shapes, and multi-axis machining. Deburr right in your CNC machine with these high-precision burs held to end mill tolerances, and stop scrapping expensive parts due to handheld operator errors.
- 270 Degree spherical ball is ideal for deburring complex shapes and multi-axis machining
- Deburr in your CNC machine with these high-precision burs held to end mill tolerances
- Stop scrapping expensive parts due to handheld operator errors
- High flute count allows for increased feeds which reduces cycle times
- Achieve better finish than with milling-type cutters
- Double cut style flute pattern
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1000" |
| Neck Diameter (Inch) | 0.0600" |
| Length of Cut (Inch) | 0.0854" |
| Neck Length (Inch) | 0.0312" (1/32) |
| Overall Reach (Inch) | 0.3970" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Radius | 0.0500" |
| Number of Flutes | 2 |
| Wrap Angle | 270 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Coating/Finish | C3 |
