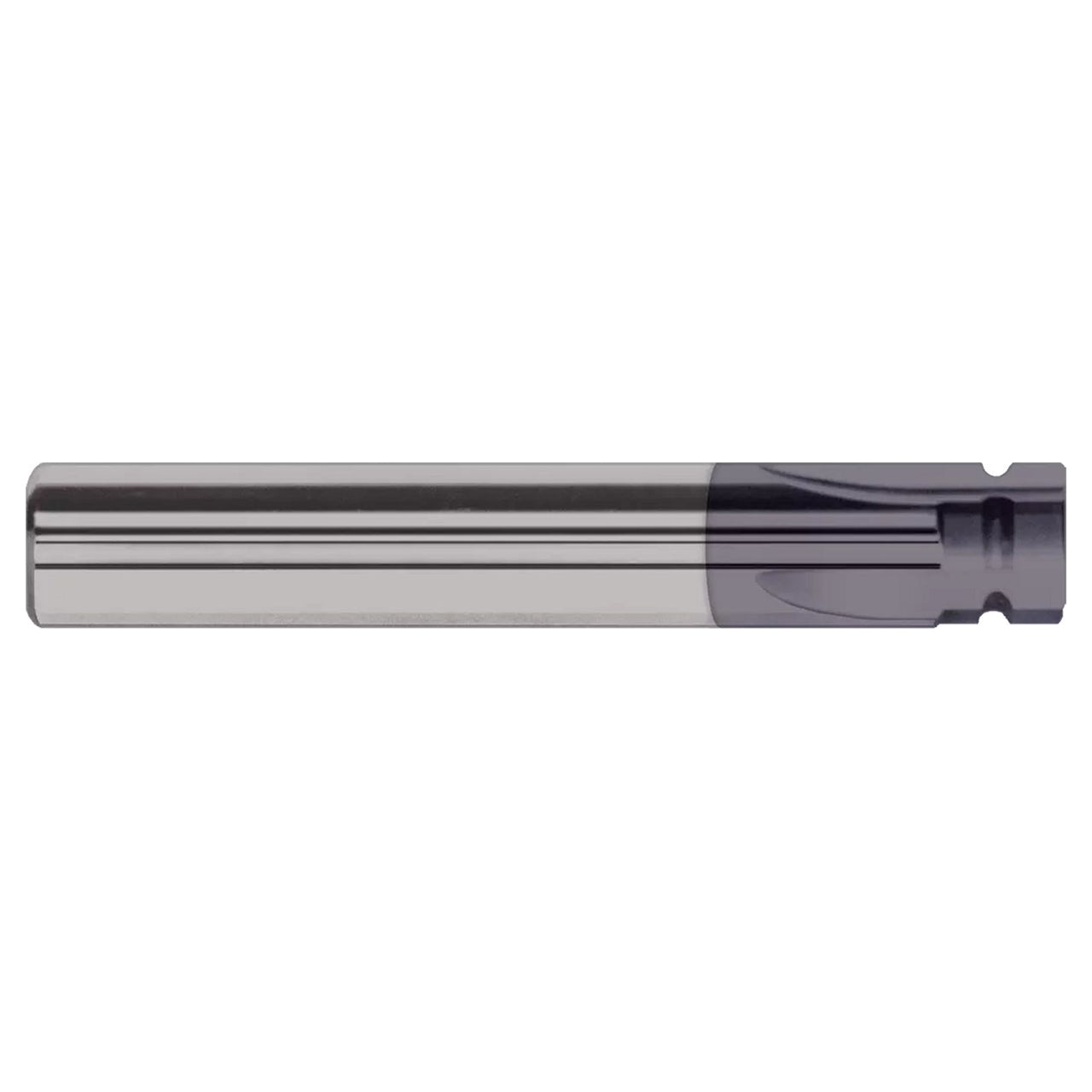

Harvey Tool 32802-C3 | 0.0312" (1/32) Radius x 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 0.3120" (5/16) LOC Concave AlTiN Coated Carbide Concave Radius End Mill

Harvey Tool 32802-C3 | 0.0312" (1/32) Radius x 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 0.3120" (5/16) LOC Concave AlTiN Coated Carbide Concave Radius End Mill

SKU: 25211153

$141.20 USD
$141.20 USD $141.20 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 127 Grams

View full details

CNC ground in the USA, this Harvey Tool offering of 4 flute Concave Radius End Mills features tooling with a solid carbide head and a steel shank.

  • Ground form relieved (can be re-ground without losing radius
  • Cutting on OD and radius only (non end-cutting)
  • CNC ground in the USA
  • Solid carbide
  • 4 Flutes

Product Specifications
Tool Number 32802-C3
Cutter Diameter (Inch) 0.5000" (1/2)
Length of Cut (Inch) 0.3120" (5/16)
Overall Length (Inch) 3.0000" (3)
Radius (Inch) 0.0312" (1/32)
Flutes 4
Radius Center (Inch) 0.1562" (5/32)
Shank Diameter (Inch) 0.5000" (1/2)
Coating C3
