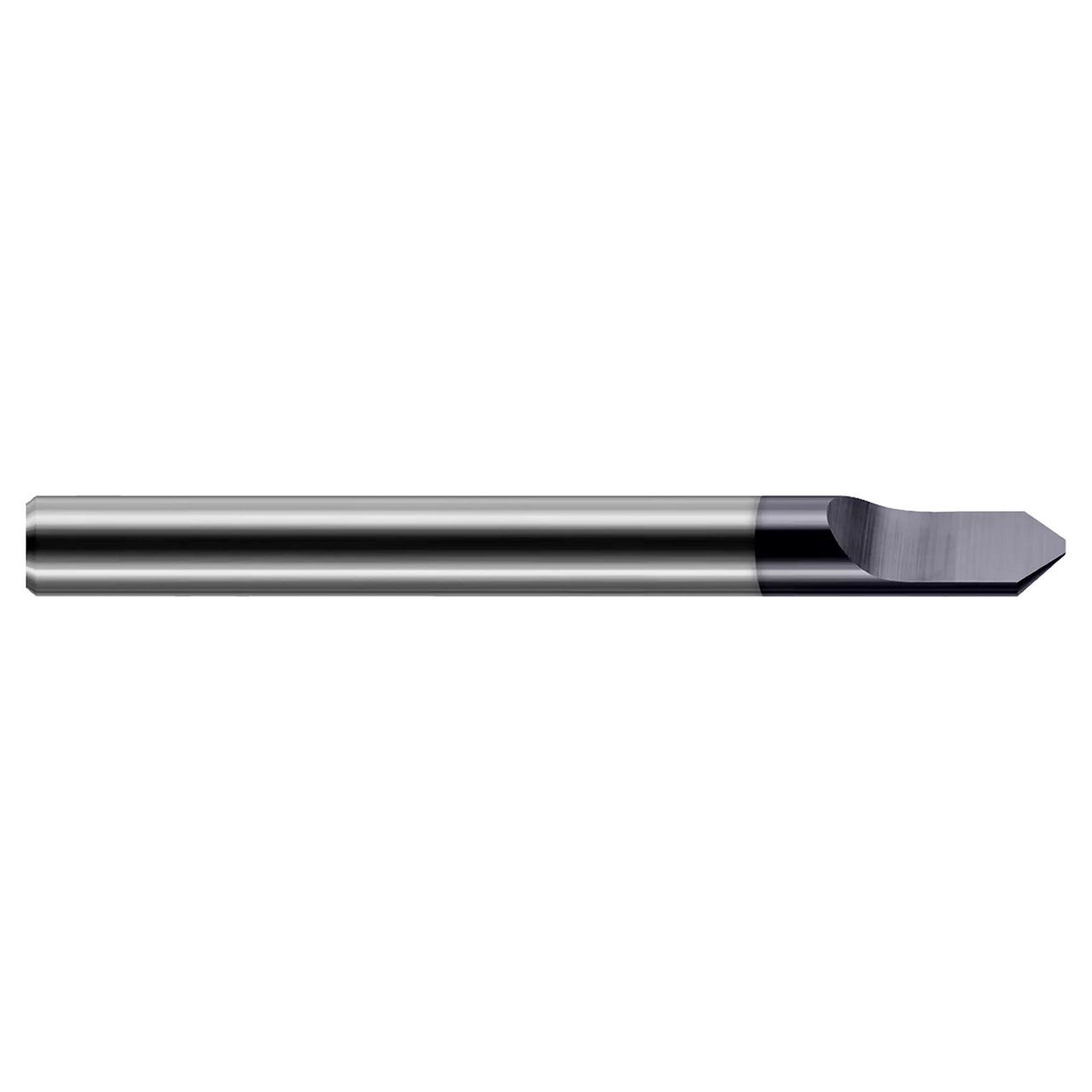

This Harvey Tool offering of solid carbide engraving cutters has a tipped off end diameter for improved cutting action. This half-round drill style tool is relieved for right hand milling operations and is offered in nine included angles.
Features- Tipped off end diameter for improved cutting
- Flat (F) is flat generated in workpiece
- Half round drill style
- Relieved for right hand milling
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 25242-C4 |
| Length of Cut (Inch) | 0.2050" |
| Overall Length (Inch) | 1.5000" (1-1/2) |
| Flat on Part (Inch) | 0.0150" (1/64) |
| Split Length (Inch) | 0.3750" (3/8) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Angle per Side | 15 Degree |
| Included Angle | 30 Degree |
| Number of Flutes | 1 |
| Coating | C4 |
| Type | II |
| Profile | Flat |
