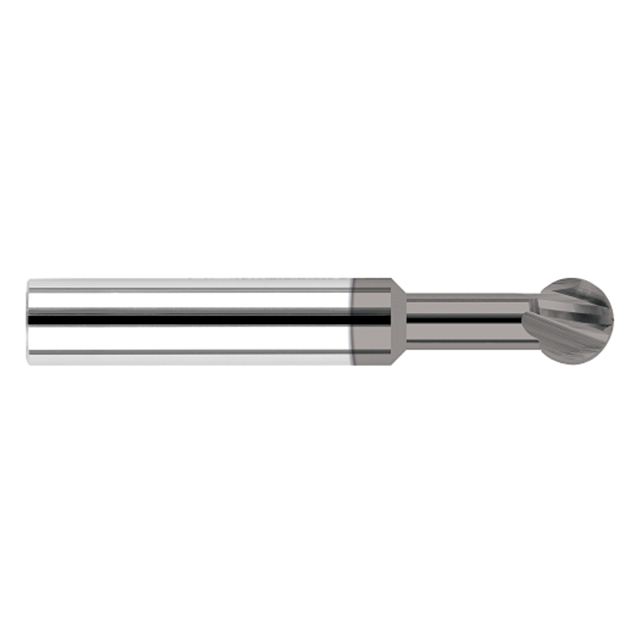

Product Specifications
| Manufacturer Part Number | 23220-C4 |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.313" |
| Neck Diameter (Decimal Inch) | 0.201" |
| Length of Cut (Decimal Inch) | 0.266" |
| Neck Length (Inch) | 3/4" |
| Neck Length (Decimal Inch) | 0.750" |
| Overall Reach (Decimal Inch) | 1.016" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.500" |
| Radius (Inch) | 5/32" |
| Radius (Decimal Inch) | 0.156" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.313" |
| Wrap Angle (Degree) | 270 Degree |
| Number of Flutes | 4 |
| Material | Carbide |
| Coating | Amorphous Diamond |
| Product Type | Undercutting End Mill |
