Product Specifications
| Manufacturer Part Number | 23106-C4 |
| Diameter (Decimal Inch) | 0.094" |
| Neck Diameter (Decimal Inch) | 0.054" |
| Length of Cut (Decimal Inch) | 0.079" |
| Neck Length (Inch) | 1/16" |
| Neck Length (Decimal Inch) | 0.062" |
| Overall Reach (Decimal Inch) | 0.142" |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Radius (Inch) | 3/64" |
| Radius (Decimal Inch) | 0.047" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Wrap Angle (Degree) | 270 Degree |
| Number of Flutes | 2 |
| Material | Carbide |
| Coating | Amorphous Diamond |

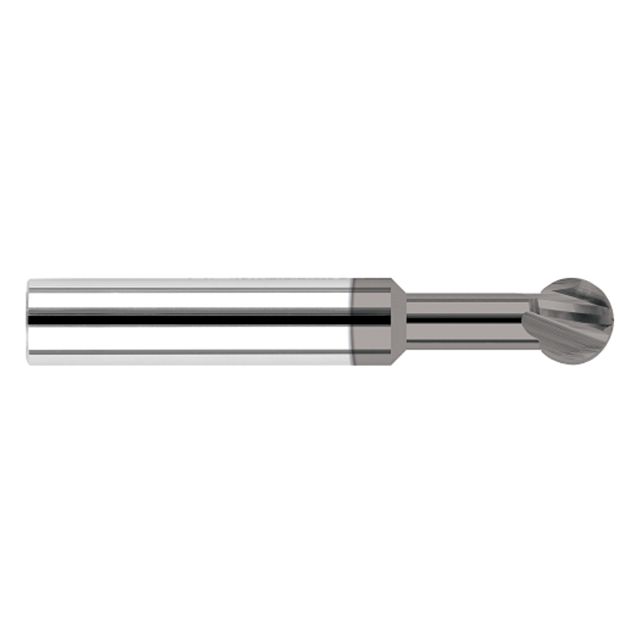

| Product Type | Undercutting End Mill |
