Product Specifications
| Manufacturer Part Number | 22380 |
| Cutter Diameter (Decimal Inch) | 0.250" |
| Cutter Diameter (Inch) | 1/4" |
| Neck Diameter (Decimal Inch) | 0.125" |
| Neck Diameter (Inch) | 1/8" |
| Cutter Width (Decimal Inch) | 0.080" |
| Neck Length (Decimal Inch) | 0.375" |
| Neck Length (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Radial Depth of Cut (Decimal Inch) | 0.053" |
| Number of Flute | 6 |
| Reach Multiple | (1.5x) |
| Type | I |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Metric | No |
| Coating | Uncoated |

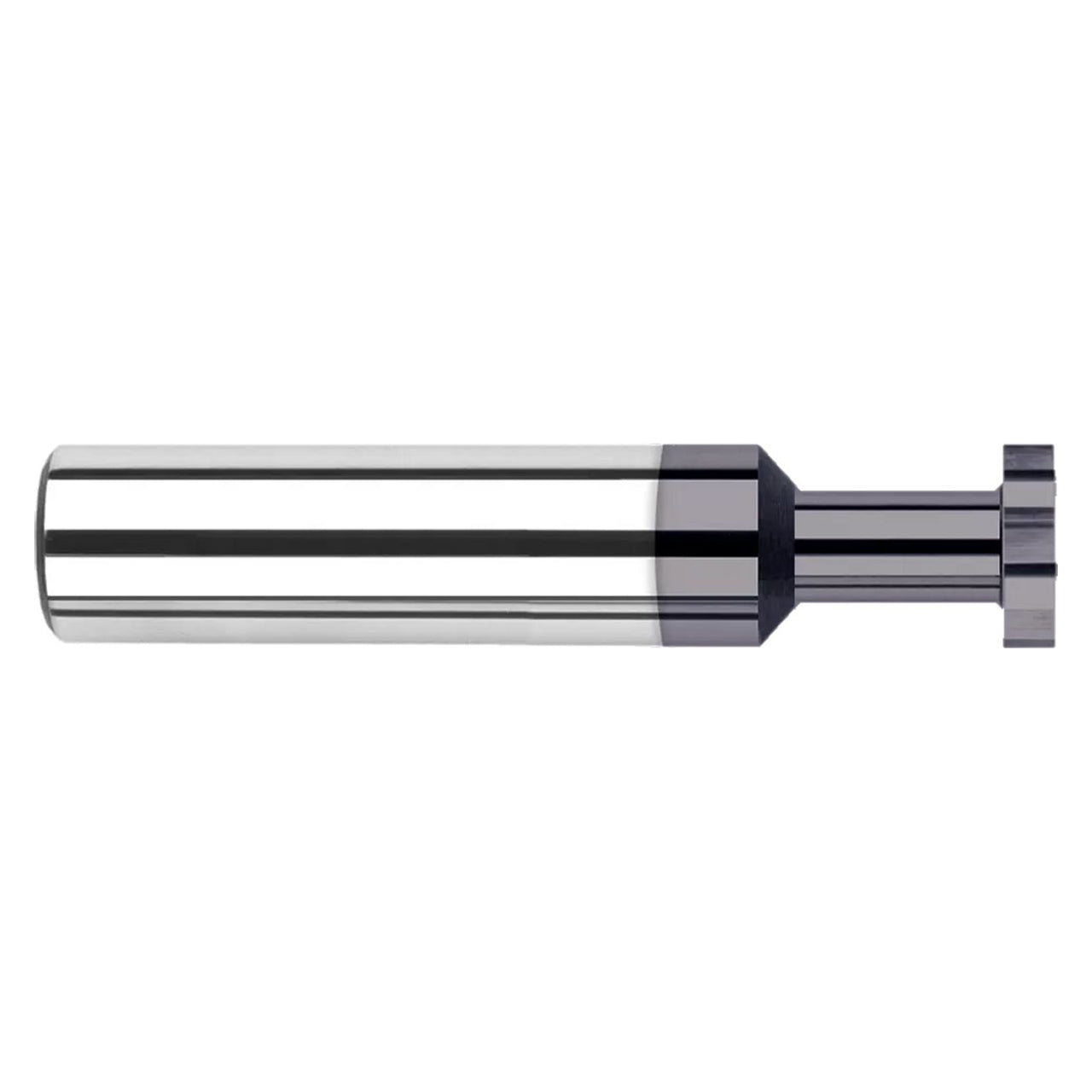

| Product Type | Keyseat Cutter |
