Harvey Tool

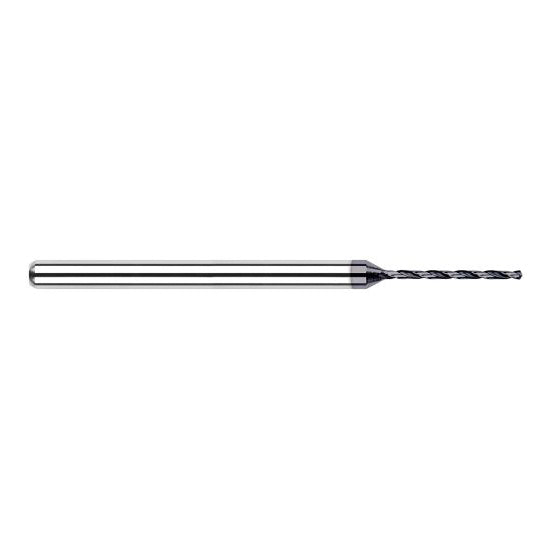

Harvey Tool 20462-C3 | 0.1040" Diameter x 0.4130" Flute Length x 1/8" Straight Shank x 1-1/2" OAL 130 Degree Drill Point Angle AlTiN Coated Solid Carbide Micro Drill Bit

Harvey Tool 20462-C3 | 0.1040" Diameter x 0.4130" Flute Length x 1/8" Straight Shank x 1-1/2" OAL 130 Degree Drill Point Angle AlTiN Coated Solid Carbide Micro Drill Bit

SKU: 10101187

$21.80 USD
$21.80 USD $21.80 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details
Features
  • Miniature drills down to .002"
  • For tools .020"" and smaller, there is an intermediate neck diameter as pictured above
  • 130 Degree drill point
  • Solid carbide
  • CNC ground in Germany
Product Specifications
Drill Diameter (Decimal Inch) 0.1040"
Point Angle 130 Degree
Flute Length (Decimal Inch) 0.4130"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (Inch) 1-1/2"
Finish/Coating AlTiN
Through Coolant No
Material Solid Carbide
Number of Flutes 2
Single or Double Single
