Harvey Tool

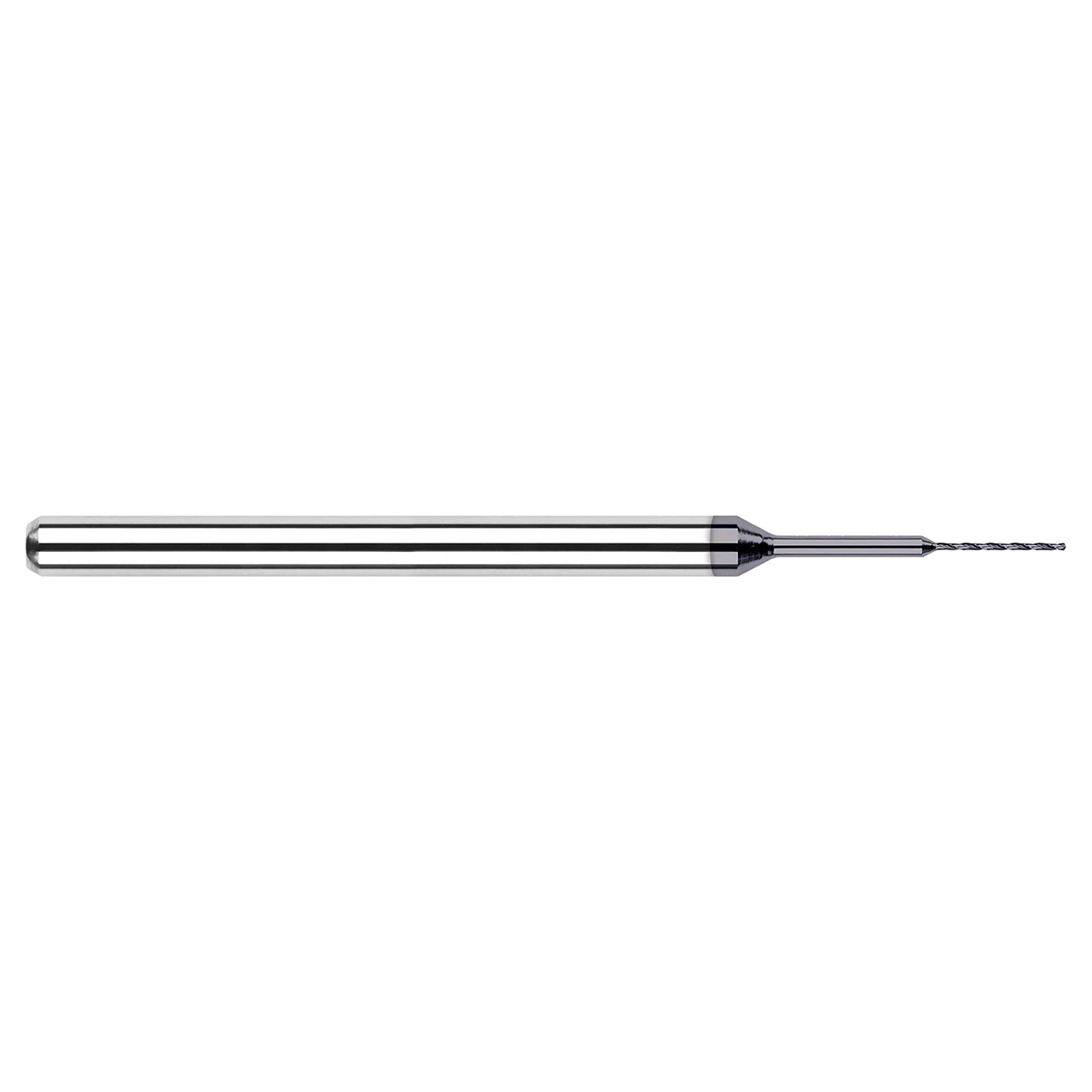

Harvey Tool 20120-C4 | 0.2300" Flute Length x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes Amorphous Diamond Coated Carbide Miniature Drill

Harvey Tool 20120-C4 | 0.2300" Flute Length x 0.1250" (1/8) Shank x 1.5000" (1-1/2) OAL 2 Flutes Amorphous Diamond Coated Carbide Miniature Drill

SKU: 10252802

$33.60 USD
$33.60 USD $33.60 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details
  • CNC ground in Germany
  • 130 Degree drill point
  • Solid carbide

Product Specifications
Tool Number 20120-C4
Drill Diameter (Inch) 0.0120"
Neck Diameter (Inch) 0.0280" (.7 mm)
Flute Length (Inch) 0.2300"
Overall Reach (Inch) 0.4130"
Overall Length (Inch) 1.5000" (1-1/2)
Point Angle 130
Flutes 2
Shank Diameter (Inch) 0.1250" (1/8)
Coating C4
