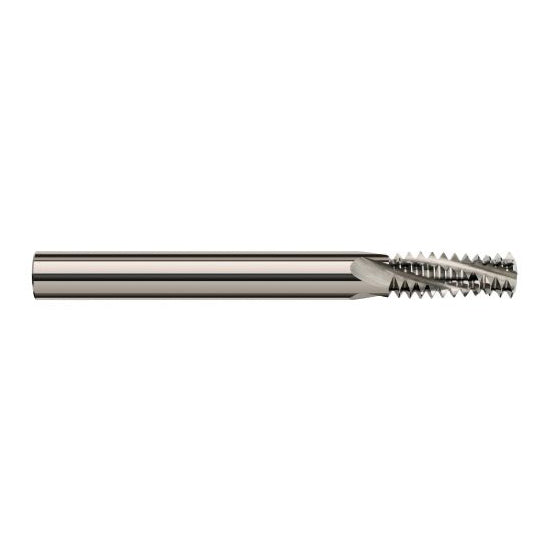

Features
- Cuts Internal and External 60 DegreeUN Threads
- Helical Flutes
- Fractional Shanks
- Mills Right Hand and Left Hand Threads
- Able to cut larger threads of the same pitch
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Size | M12-1.75 |
| Milling Diameter (Decimal Inch) | 0.3600" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (Inch) | 7/8" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Coolant Through (Yes/No) | No |
| Included Angle | 60 Degree |
| Single or Double | Single |
