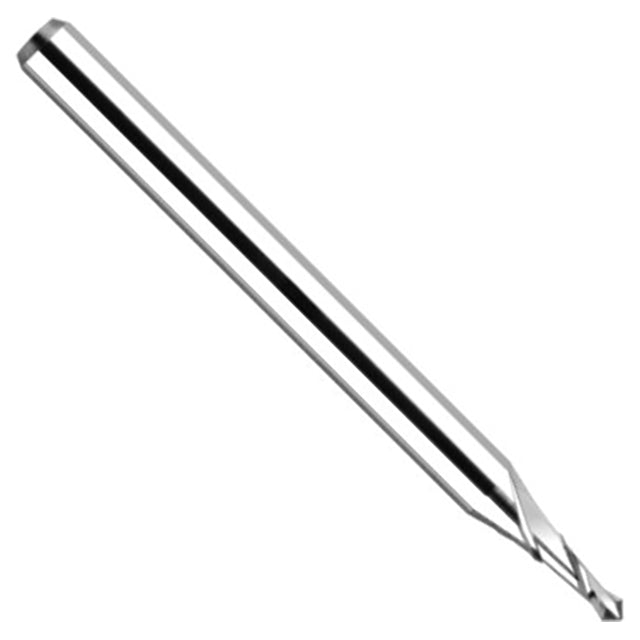

Features
- 90 Degree available in long length!
- Thinned Web to Reduce Walking
- Self-Centering Point Geometry
- 2 Flutes
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Drill Diameter (Decimal Inch) | 0.0310" |
| Drill Diameter (Inch) | 1/32" |
| Angle Per Side | 45 Degrees |
| Included Angle | 90 Degree |
| Flute Length (Decimal Inch) | 0.0930" |
| Flute Length (Inch) | 3/32" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Overall Length (Decimal Inch) | 1.5000" |
| Overall Length (Inch) | 1-1/2" |
| Finish/Coating | Uncoated |
| Through Coolant | No |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| LOC Multiple | (3x) |
| Web Thickness (Decimal Inch) | 0.0030" |
| Type | I |
| Single or Double | Single |
