Features:
- High penetration rate carbide drill with double margin flute design Unique web construction Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location

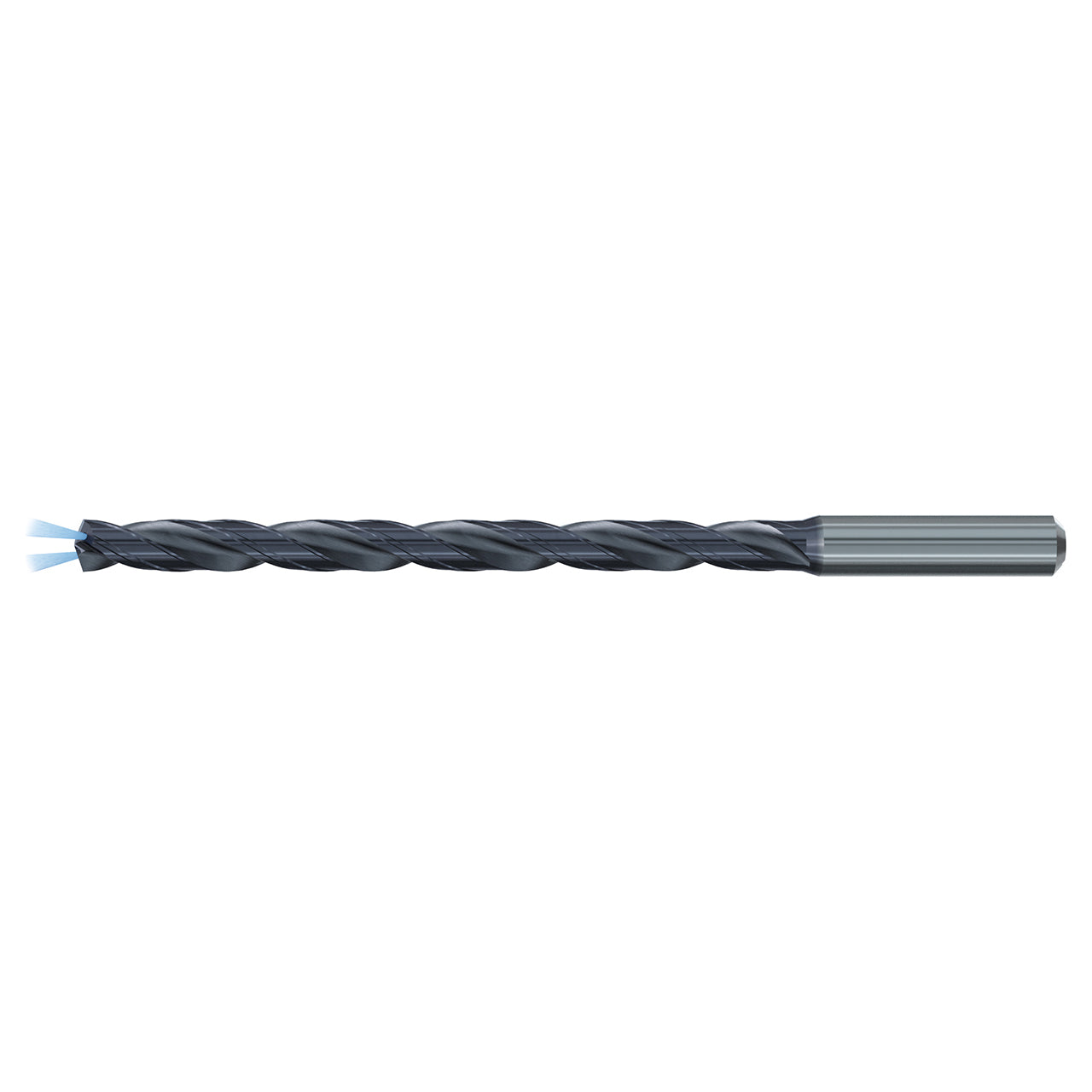

Product Specifications
| Manufacturer Part Number | TA233344.0516 |
| Cutting Diameter (Inch) | 13/64" |
| Cutting Diameter (Decimal Inch) | 0.203" |
| Overall Length (mm) | 116.00mm |
| Flute Length (mm) | 78.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 12xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Yes |
| Number of Flute | 2 |
| Point Angle (Degree) | 140 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | EF Drill |
| Product Type | Extra Long Drill Bit |
