Features:

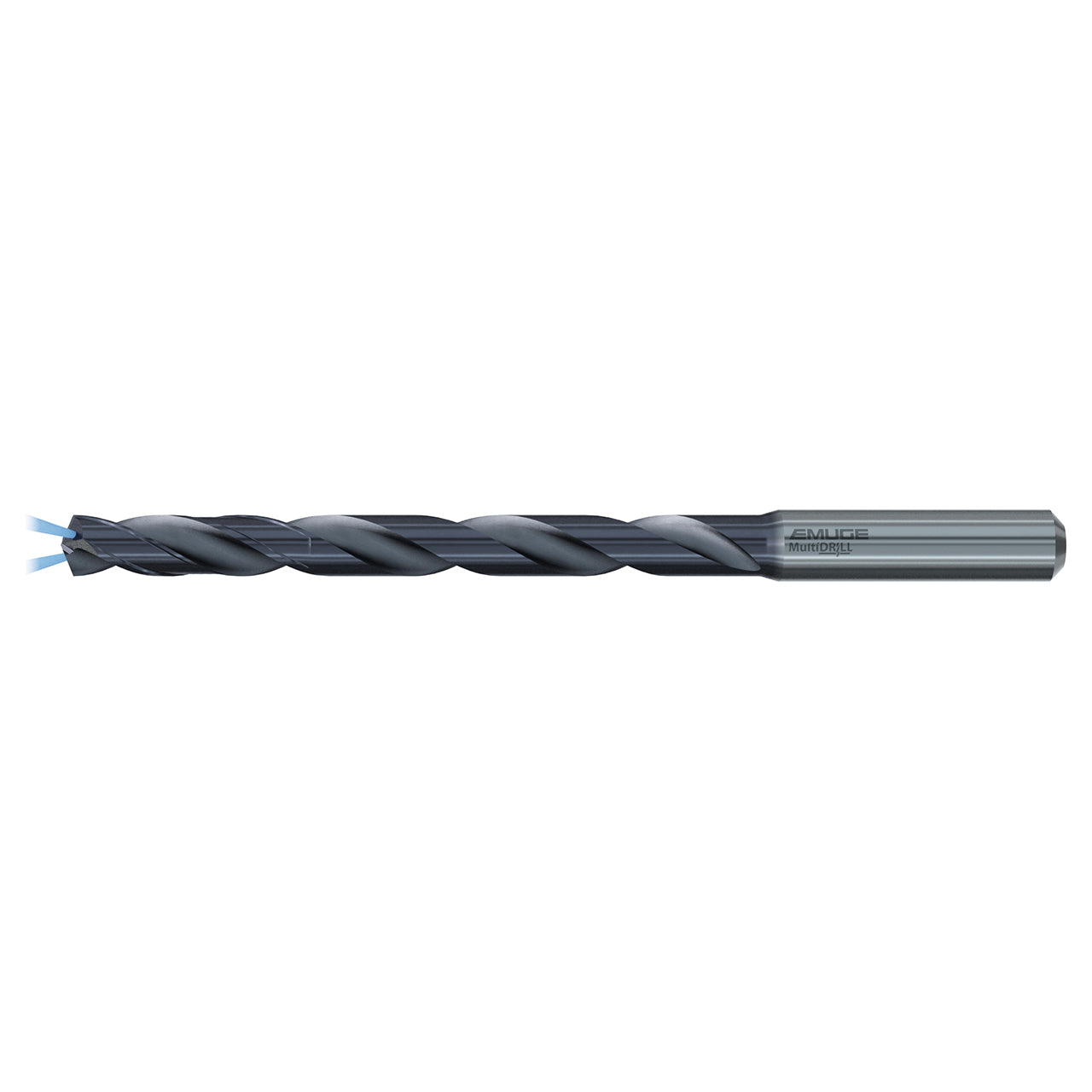

- High penetration rate carbide drill with double margin flute design Unique web construction Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Manufacturer Part Number | TA229744.0790 |
| Cutting Diameter (Decimal Inch) | 0.311" |
| Cutting Diameter (mm) | 7.90mm |
| Overall Length (mm) | 117.00mm |
| Flute Length (mm) | 80.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 8xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Yes |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiAlN-T63 |
| Tool Type | MULTI-DRILL |
| Application | High Penetration Rate Drill |
| Product Type | Extra Long Drill Bit |
