Features:

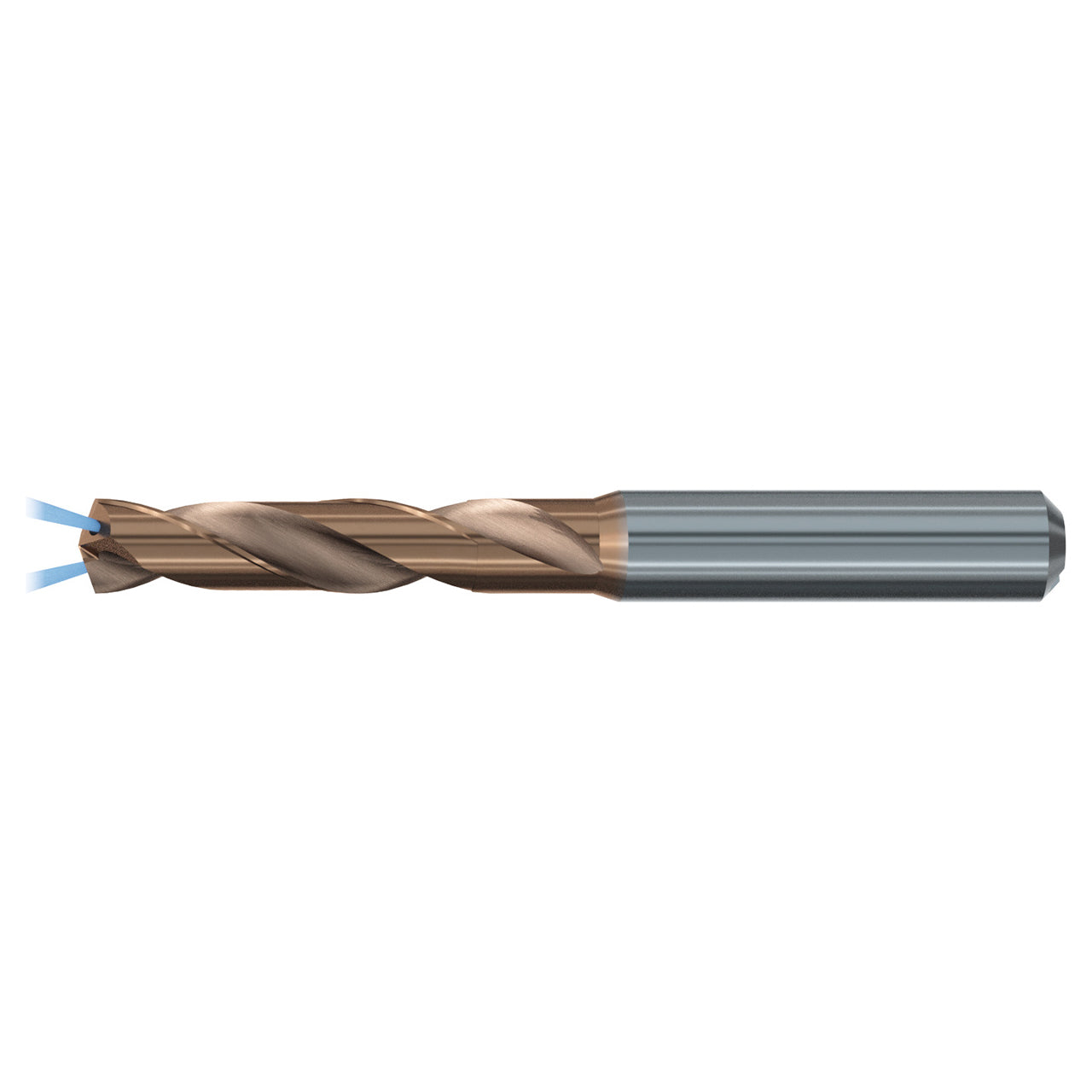

- InoxDrill is designed for high penetration rate drilling in production applications
- Self-centering point geometry that eliminates the need for spot drilling
- Unique flute design creates short, constant chip formations that eliminate the need for peck-drilling
- Advanced ALCR-89 coating for heat and wear resistance in aerospace materials
Product Specifications
| Manufacturer Part Number | TA201724.0992 |
| Cutting Diameter (Inch) | 25/64" |
| Cutting Diameter (Decimal Inch) | 0.391" |
| Overall Length (mm) | 89.00mm |
| Flute Length (mm) | 47.00mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Group Length | 3xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Yes |
| Number of Flute | 2 |
| Point Angle (Degree) | 140 Degree |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | ALCR-89 |
| Tool Type | InoxDrill |
| Application | High Penetration Rate Drill |
| Product Type | Screw Machine Length Drill Bit |
