Features:

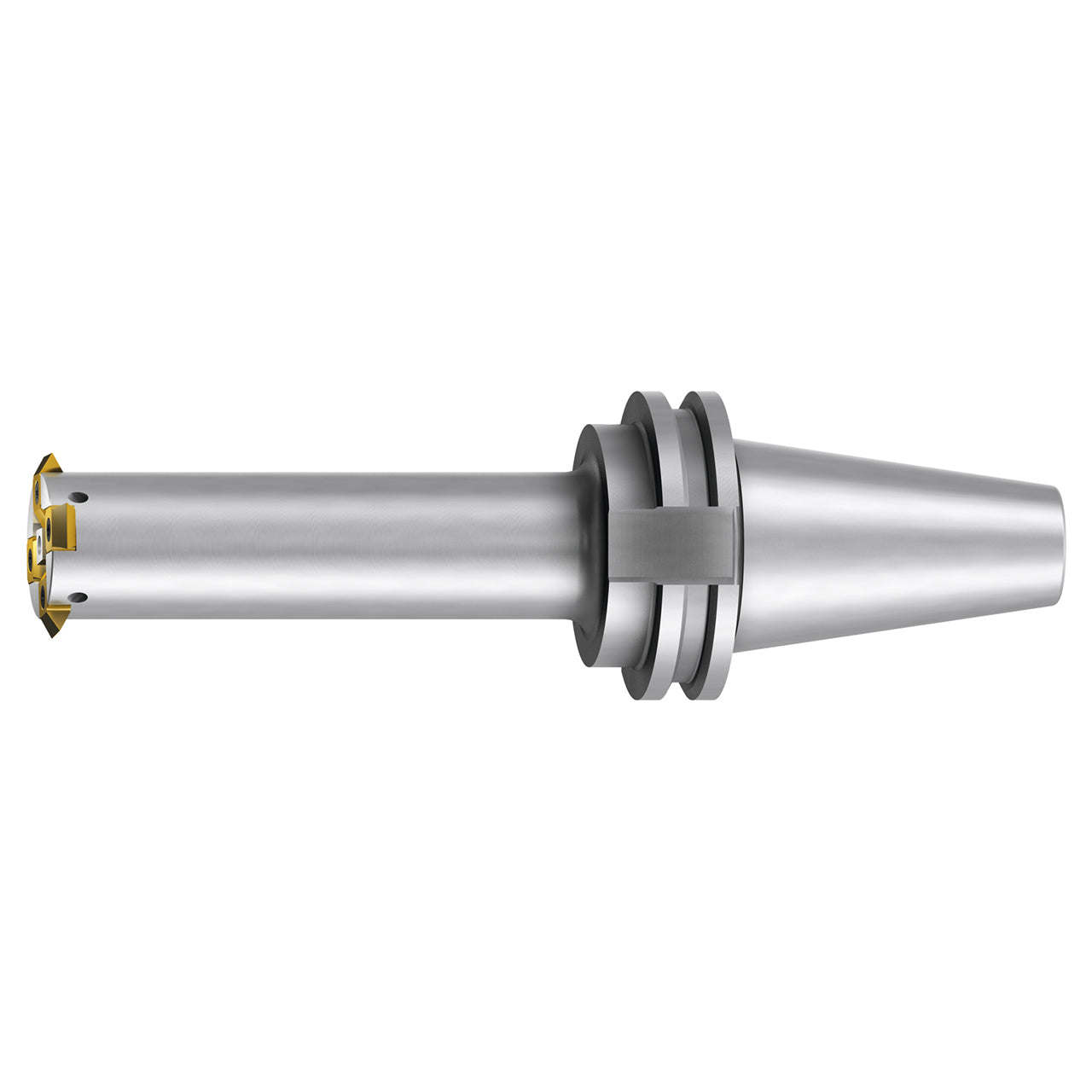

- Gigant-IC indexable insert body for large diameter threading
- Circular thread milling bodies for 4-tooth indexable inserts Gr13
- Radial coolant channels
- Economical solution for high production threading
Product Specifications
| Manufacturer Part Number | GZ344003 |
| Cutting Diameter (mm) | 40.25mm |
| Thread Diameter Size | #13 |
| Overall Length (mm) | 245.00mm |
| Flute Length (mm) | 110.00mm |
| Tool Cylindrical - Shank Style | SK 50 |
| Shank Standard | DIN 69871-SK |
| Coolant Supply Property | Internal |
| Coolant Fed | Radial |
| Cutting Edge Material | Steel |
| Coating | Bright |
| Tool Type | Gigant-IC Body |
| Application | Indexable Thread Milling |
| Product Type | Thread Mill Insert |
